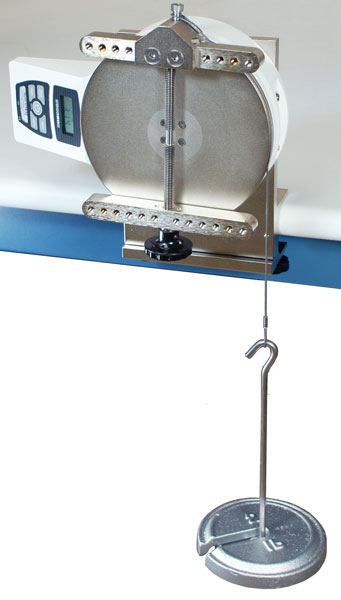

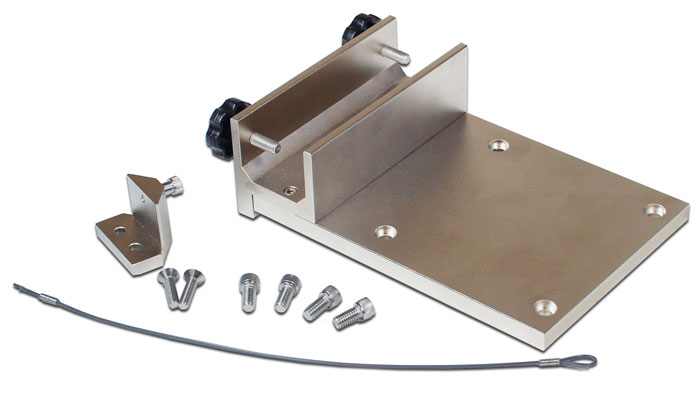

The AC1036 is designed to facilitate the calibration of any CAP-TT01, MTT01, CAP-TA (CTA), CAP-T (CT) Cap Torque Tester. The kit contains a complete set of attachments required to mount the tester to a bench, as well as the necessary brackets and cable to mount weights, as follows:
- Right-angle bench mounting bracket
- Cable with looped ends
- Attachment, cable to tester
- Set of hardware
Weights are not included. Suggested source for calibration weights:
Rice Lake Weighing Systems - www.ricelake.com
Troemner Precision Weights - www.troemner.com
CAP-TT01 torque testers must be calibrated at full scale in English units only. Refer to the CAP-TT01 user's guide for complete calibration instructions. The following weight combinations are recommended:
CAP-TT01-12:
3.6 lb, as follows:
1 lb hanger weight- qty. 1
2 lb slotted weight - qty. 1
0.5 lb weight - qty. 1
0.1 lb weight - qty. 1
CAP-TT01-25:
7.5 lb, as follows:
1 lb hanger weight- qty. 1
5 lb slotted weight - qty. 1
1 lb weight - qty. 1
0.5 lb weight - qty. 1
CAP-TT01-50:
15 lb, as follows:
1 lb hanger weight- qty. 1
10 lb slotted weight - qty. 1
2 lb slotted weight - qty. 2
CAP-TT01-100:
30 lb, as follows:
1 lb hanger weight- qty. 1
20 lb slotted weight - qty. 1
5 lb slotted weight - qty. 1
2 lb slotted weight - qty. 2
