The IIW Series of calibration blocks are used for the calibration of transverse and longitudinal wave distance setting determination of the sound beam point of incidence and exact angle of propagation.

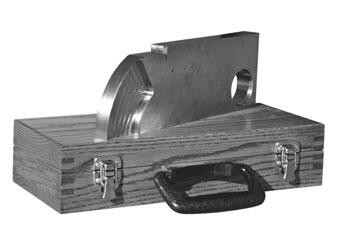

Case sold separately
| Model | Description | Bock Types | Geometry |
|---|---|---|---|
| X-000-0015 | IIW Type 1 - per institute of welding (IIW), ASTM-E-164 & MIL-STB-2154 | Carbon Steel, Aluminium, Stainless Steel, Titanium | 1" x 4" x 12". Contains 2" diameter hole and 4" radius. Also 1/8" x 1" radius alternate reflector 1/16" deep on echo side. |
| X-000-0016 | IIW Type 2- per IIW & USAFTO 33 B-1-1 (6-1-84) | Carbon Steel, Aluminium, Stainless Steel, Titanium | Modified version of IIW Type 1, with a 2" radius 1/4" deep cut out test side, and 3 extra side drilled resolution holes. |
| X-000-0018 | IIW V-1 - per BS-2704 | Carbon Steel, Aluminium, Stainless Steel, Titanium | Metric Version of IIW Type 1 |

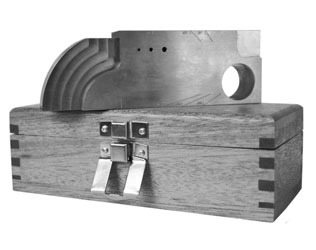

| MINI-IIW | MINI IIW - Miniature version of IIW Type 2 | Carbon Steel, Aluminium, Stainless Steel, Titanium | 1" x 2" x 6". Contains 1" diameter hole, 2" radius 1/4" deep cut out test side 3 side drilled resolution holes, and 3/4" sq. x 0.100" deep cut out. |
| Item | Description | Price | ||
|---|---|---|---|---|
IIW Type 1, Carbon Steel Calibration Block | $625.00 | |||
IIW Type 1, Aluminum | $625.00 | |||
IIW Type 1 Calibration Block, Stainless Steel | $1,060.00 | |||
IIW Type 1, Titanium Calibration Block, Ti-6Al-4V ASTM Grade 5 | $1,885.00 | |||
IIW Type 2, Carbon Steel | $725.00 | |||
IIW Type 2, Aluminum | $725.00 | |||
IIW Type 2, Stainless Steel | $1,070.00 | |||
IIW Type 2, Titanium | $2,210.00 | |||
Calibration Block IIW V-1 Calibration Block 1018 Steel - METRIC (European version of IIW) per BS-2704 - Steel | $625.00 | |||
IIW V-1(European version of IIW) per BS-2704 , Aluminum | $690.00 | |||
IIW V-1 (European version of IIW) per BS-2704 Stn Stl | $1,170.00 | |||
IIW V-1 (European version of IIW) per BS-2704 , Titanium | $1,890.00 | |||
Mini IIW, Carbon Steel | $695.00 | |||
Mini IIW, Aluminum | $695.00 | |||
Mini IIW, Stainless Steel | $1,025.00 | |||
Mini IIW, Titanium | $1,850.00 |
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
