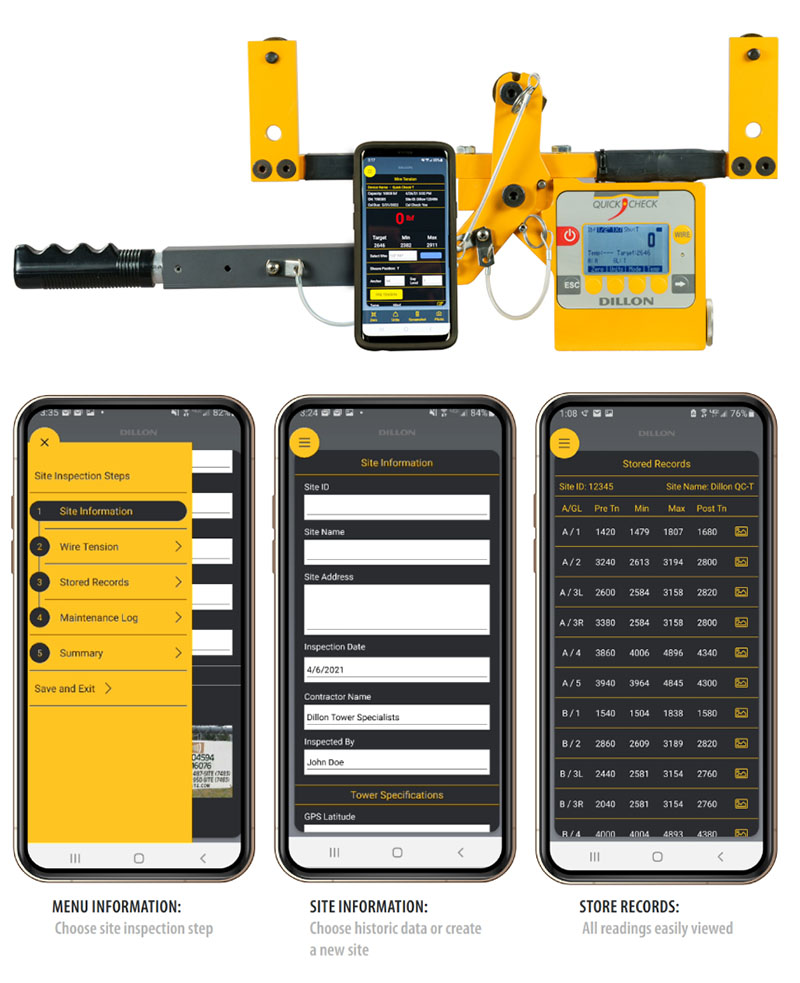

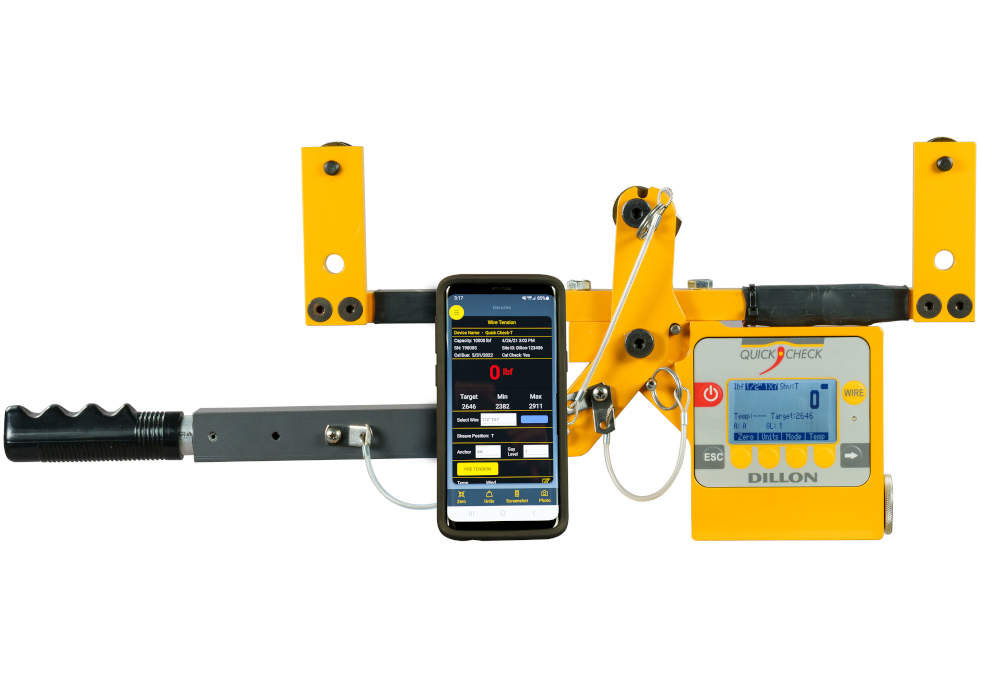

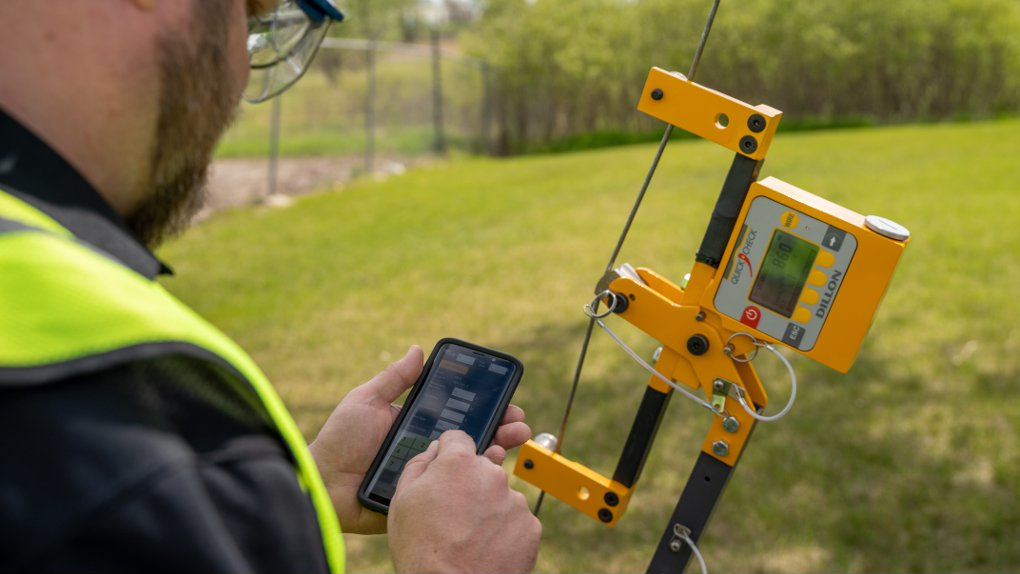

The Quick Check-T tension meter with Bluetooth output is designed for precise tension measurement of tower guy cables. The included mobile app produces comprehensive reports of tension readings with GPS location, date, and time which can be easily exported once the job has been completed.

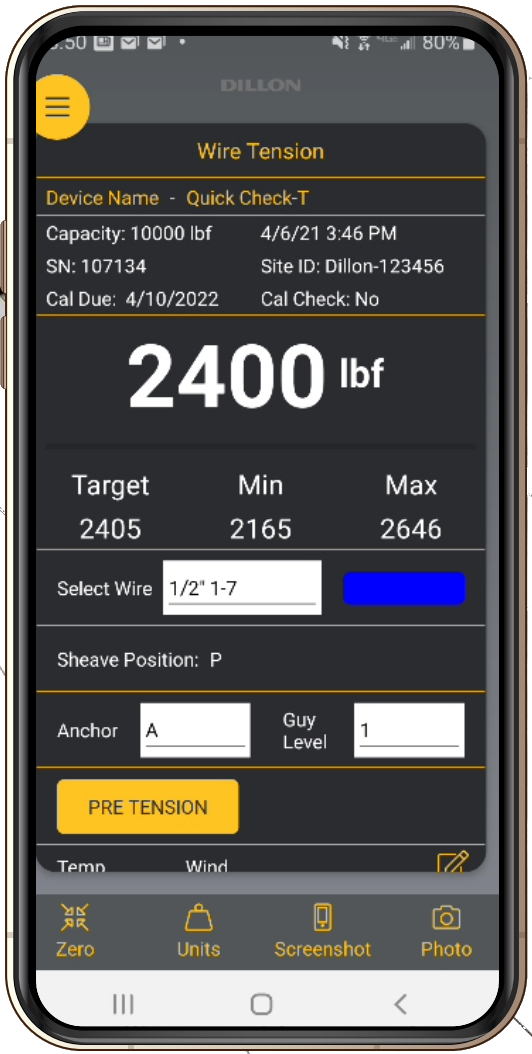

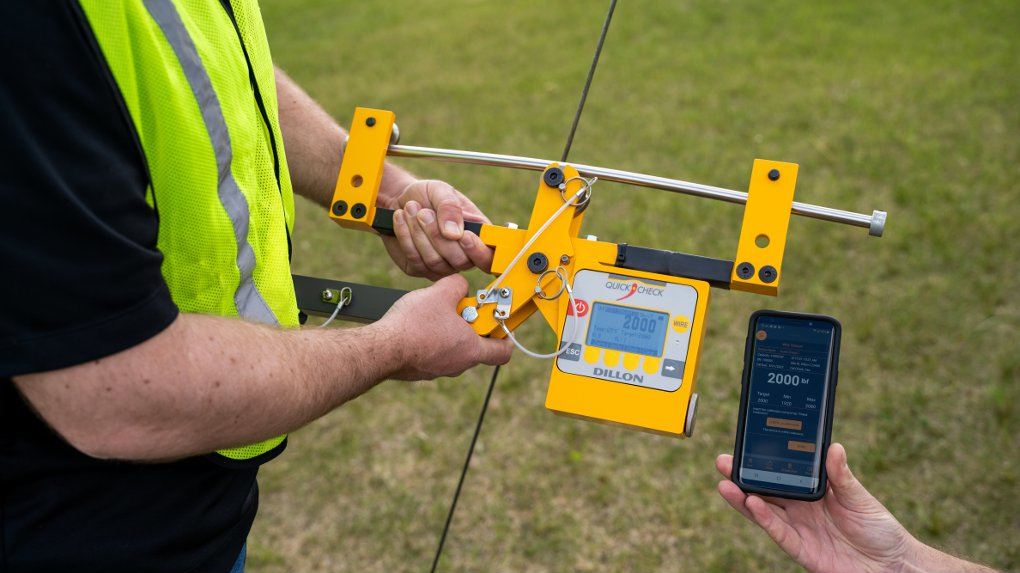

The QC-T can be placed on a cable, measure its tension, and removed in under three seconds! There are no complex lookup tables or conversion charts required. The operator can quickly select from 20 different wire sizes and types stored in QC-T's memory. The Check-Tensioning mode graphically displays the current and target tensions for an extremely quick setting of line tension. Even the infrequent battery changes are quick.
The QC-T is used in many industries to ensure proper tensioning. Typical applications include tower and stack guy wires, zip lines, pretensioned cable barriers, bridges, elevators, winch rope, overhead electric transit wires, fall arrest systems, hll horizontal life lines, aircraft cables and utilities.
- Supplied with NIST Traceable Calibration Report
- Bluetooth Output for Comprehesive Site Report Generation View Sample

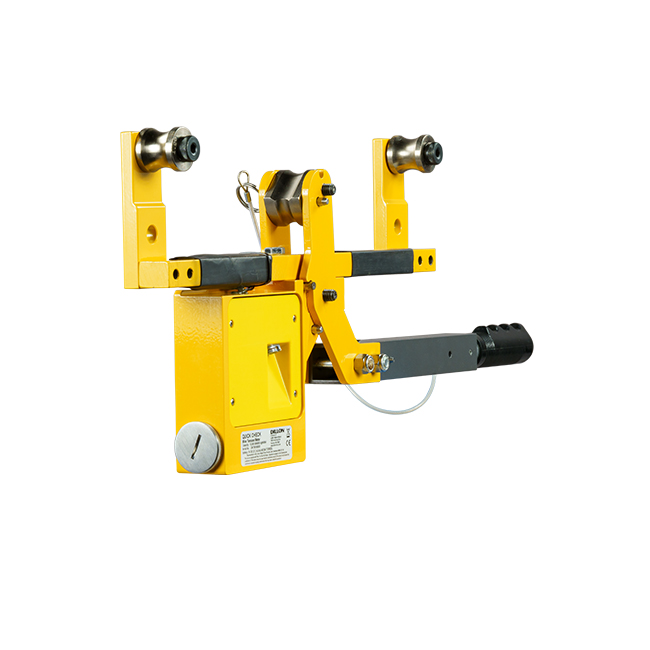

- Multi-wire single sheave
- Automatic target tension calculations
- Ability to capture pre and post tension readings
- 2 year warranty
| Capacity | 10,000 lb / 45 kN / 4500 kg |
| Wire Size | 3/16” - 1.0” / 4.75mm - 25.4mm |
| Accuracy | ±3% instrument capacity |
| Calibrations | Up to 20 can be stored independently |
| Operating Temperature | -4°F to 158°F (-20°C to 70°C) |
| Units of Measure | lbf, kgf & Newtons |
| Size | 0 x 23 x 3” (25 x 59 x 8 cm) |
| Weight | about 11 lb (5kg) |
| Display | Dot-graphic LCD display supports full text |
| Environmental Protection | Suitable for continued outdoor use |

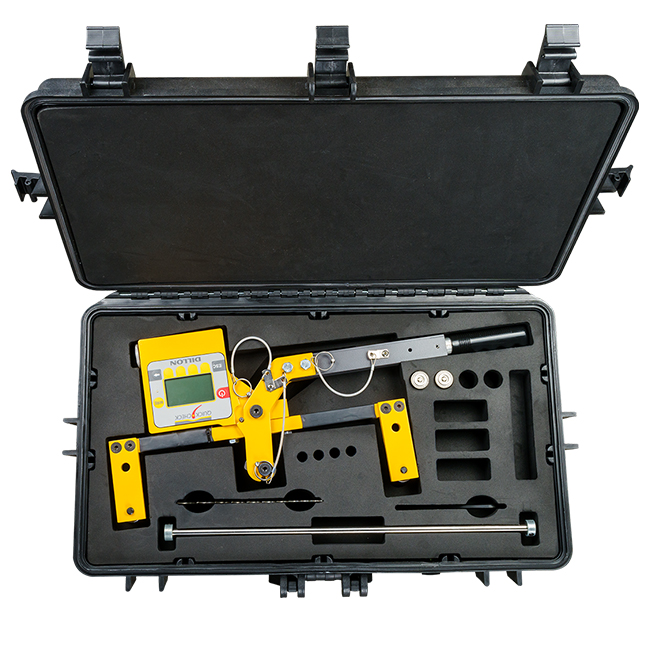

| Protection | Hard polymer storage case included |
| Power | 2 x AA batteries with 120+ hours life (backlight off) |
When listing cables you must provide the diameter & construction, for example;
Cable 1: 1/2", 1x7
Cable 2: 3/4", 1x19

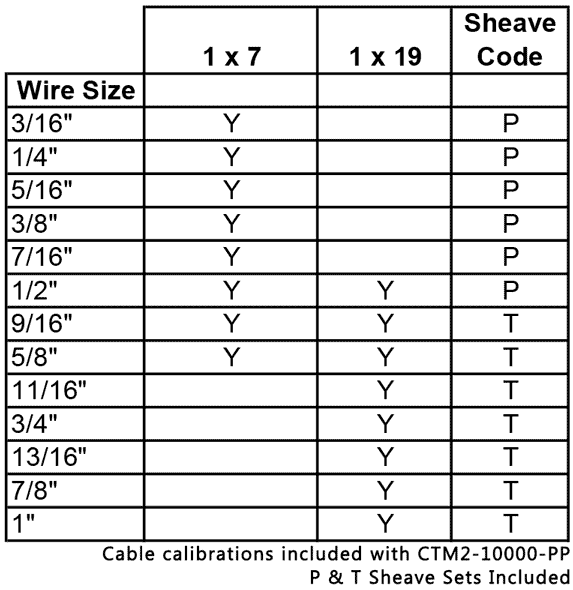

The QC-T-TOWER includes 16 calibrations for the following size cables:
| 3/16" 1x7 | 1/4" 1x7 | 5/16" 1x7 | 3/8" 1x7 |
| 7/16" 1x7 | 1/2" 1x7 | 1/2" 1x19 | 9/16" 1x7 |
| 9/16" 1x19 | 5/8" 1x7 | 5/8" 1x19 | 11/16" 1x19 |
| 3/4" 1x19 | 13/16" 1x19 | 7/8" 1x19 | 1" 1x19 |
| Item | Description | Price | ||
|---|---|---|---|---|
Cable Tension Meter, 10,000 lb / 45 kN / 4500 kg, Bluetooth Output, Carrying Case, and Calibration Rod - (Calibration Additional) | $3,450.00 | |||
Cable Tension Meter with Bluetooth Output, 10,000 lb / 45 kN / 4500 kg, with 16 Common Tower Calibrations, Carrying Case, and Calibration Rod - AWT05-100370 | $5,550.00 | |||
| Accessories | ||||
QC-T-CAL | Calibration for QC-T, Specify Wire Diameter, Strand Configuration, and Wire Material | $125.00 | ||
