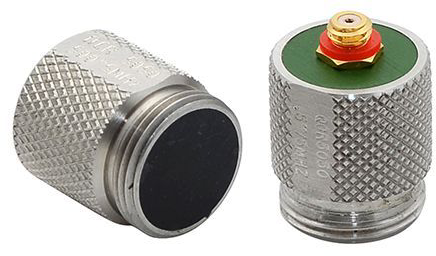

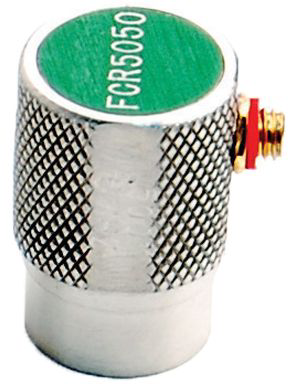

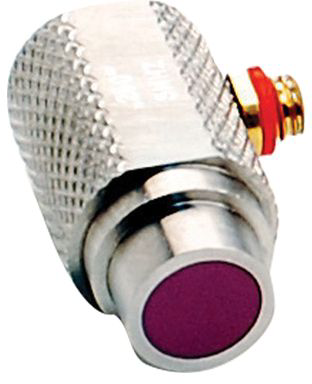

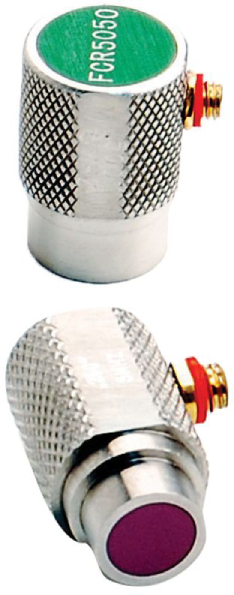

The Bolt Tension Monitors Transducers measure the change in length of a fastener when a load is applied to the fastener.
Within the elastic limit of the fastener, the change of length is proportional to the load applied, and therefore by measuring the change of length and knowing the physical properties of the fastener, the load on the fastener can be calculated.
All parts suitable for BT1-DL and BT2-DL
| Connector Type* | ||||||
|---|---|---|---|---|---|---|
| Part Number | Probe Diameter (in) | Element Type | Probe Characteristic | Damping** | Top | Side |
| 2.25 MHz Single Element Contact Transducer | ||||||
| T-5023-1855 | 1/4 | Single Element Contact | Finger Tip | R | ● | |
| T-4023-1855 | 1/4 | Single Element Contact | Finger Tip | R | ● | |
| T-702-1405 | 1/4 | Single Element Magnetic | Standard | S | ● | |
| T-703-1405 | 3/8 | Single Element Magnetic | Standard | S | ● | |
| T-5043-1855 | 1/2 | Single Element Contact | Finger Tip | R | ● | |
| T-4043-1855 | 1/2 | Single Element Contact | Finger Tip | R | ● | |
| T-704-1405 | 1/2 | Single Element Magnetic | Standard | S | ● | |
| T-706-1405 | 3/4 | Single Element Magnetic | Standard | S | ● | |
| 5.00 MHz Single Element Contact Transducer | ||||||
| T-5903-2875 | 1/8 | Single Element Contact | Finger Tip Slim | H | ● | |
| T-4903-2875 | 1/8 | Single Element Contact | Finger Tip Slim | H | ● | |
| T-700-2405 | 1/8 | Single Element Magnetic | Standard | S | ● | |
| T-5023-2855 | 1/4 | Single Element Contact | Finger Tip | R | ● | |
| T-4023-2855 | 1/4 | Single Element Contact | Finger Tip | R | ● | |
| T-702-2405 | 1/4 | Single Element Magnetic | Standard | S | ● | |
| T-703-2405 | 3/8 | Single Element Magnetic | Standard | S | ● | |
| T-5043-2855 | 1/2 | Single Element Contact | Finger Tip | R | ● | |
| T-4043-2855 | 1/2 | Single Element Contact | Finger Tip | R | ● | |
| T-704-2405 | 1/2 | Single Element Magnetic | Standard | S | ● | |
| T-706-2405 | 3/4 | Single Element Magnetic | Standard | S | ● | |
| 10.00 MHz Single Element Contact Transducer | ||||||
| T-5903-4875 | 1/8 | Single Element Contact | Finger Tip Slim | H | ● | |
| T-4903-4875 | 1/8 | Single Element Contact | Finger Tip Slim | H | ● | |
| T-700-4405 | 1/8 | Single Element Magnetic | Standard | S | ● | |
| T-5023-4855 | 1/4 | Single Element Contact | Finger Tip | R | ● | |
| T-4023-4855 | 1/4 | Single Element Contact | Finger Tip | R | ● | |
| T-702-4405 | 1/4 | Single Element Magnetic | Standard | S | ● | |
* All parts have Microdot connector type
| ** | R - Resolution Damped Transducer |
| S - Standard Undamped Transducer | |
| H - Highly Damped Transducer |
