Through the precise water content measurement with the robust humimeter BLO You can use the online evaluation device to optimally control your boiler and dryer, so that the efficiency of the system is significantly improved and costly errors are avoided.
Range:

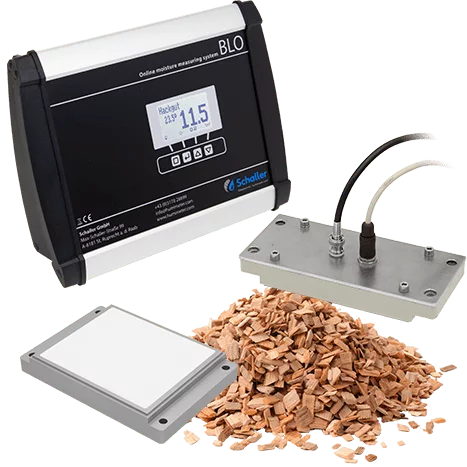

The humimeter BLO is equipped with two different external sensors depending on the requirements of the material or the system:

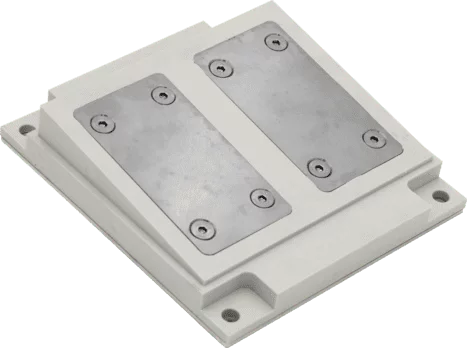

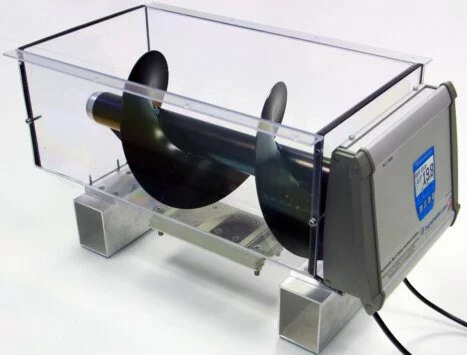

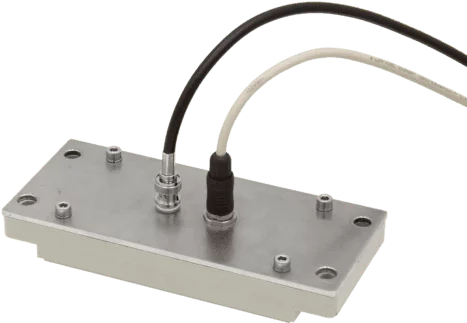

- The wood chip sensor is ideally suited for installation in screw conveyors, feed channels or bunkers. A wood chip sensor with a compression structure was specially developed for installation in places with low contact pressure and is suitable for light, loose wood chips.
- The wood chip sensor is ideally suited for installation in screw conveyors, feed channels or bunkers. A wood chip sensor with a compression structure was specially developed for installation in places with low contact pressure and is suitable for light, loose wood chips.
The wood chip sensor is ideally suited for installation in screw conveyors, feed channels or bunkers. A wood chip sensor with a compression structure was specially developed for installation in places with low contact pressure and is suitable for light, loose wood chips. The following requirements are met:
- Measuring device based on the requirements of the VDI standard 4206 sheet 4
- Material characteristics in accordance with EN ISO 16559 requirements
- Measuring device adjusted after calibration to the reference method EN ISO 18134-2
Please order the appropriate sensor separately.
- Ready calibrated system (standard sensor)

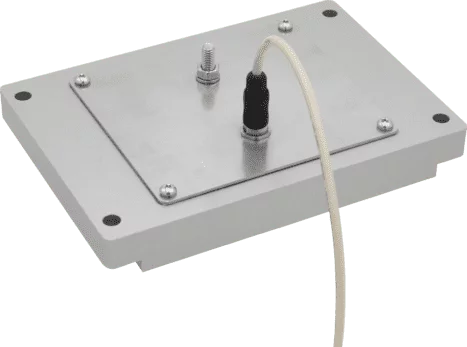

- Material-specific external sensors (wood chips & universal)
- Can be used flexibly depending on the requirements of the system
- Easy to mount
- Material-specific sensors
- Up to 32 material types can be selected and expanded in the respective national language
- Additional display of the measured material temperature

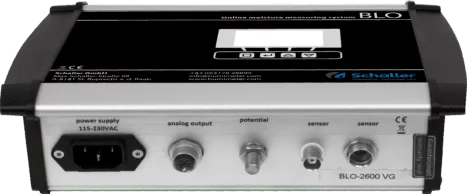

- 2 analogue outputs 4 – 20 mA for water content and temperature
- Optional: 2 relay outputs for water content
- Optional: PCL interface including software
- Increase in efficiency of your boiler by up to 5%
- Lifetime Support
| Measuring Range | 10 - 55% Water Content (120% Wood Moisture) |
| Material Temperature Range | 14 to 158°F (-10 to +70°C) |
| Resolution | 0.1% Water Content |
| Data Memory | 10,000 Readings with details |
| IP Rating | IP 54, Protection From Dust and Sprayed Water Ingress |
| Power | 24VDC (optional 100-240VAC) |
| Dimensions | 250 x 185 x 75 mm |
| Weight | 1.10 kg |
| Output | Two 4-20 mA for water content and temperature |
| MC% Method | Wet Basis |
| Item | Description | Price | ||
|---|---|---|---|---|
Includes Sensor & Display Unit for sensor for installation in a screw conveyor | $7,274.40 | |||
Includes Sensor & Display Unit for installation with low compacting pressure | $9,738.40 | |||
Includes Sensor & Display Unit. Supplied with Universal Sensor for wood chips, pellets, sawdust and other materials | $13,092.80 | |||
| Accessories | ||||
BLO-ACWORLD | Universal AC-DC Power Supply (115-230VAC), not needed if customer can supply 24VDC power | $274.40 | ||
BLO-RS232 | Optional RS-232 Output Option | $778.40 | ||
BLO-2RELAY | Optional Relay Contacts (2) | $778.40 | ||
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
