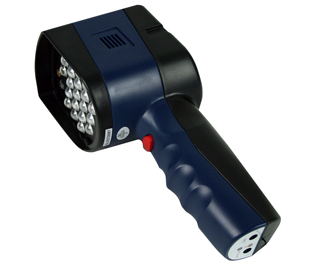

The ST-5100 is a portable, light-weight stroboscope that utilizes 21 super bright LED lamps and speed sensing laser. The ST-5100’s LED array provides a bright, stable strobe light over a wide measurement range. Unique to the ST-5100 is an auto-speed detection laser that translates speed sensed directly over to the flash rate of the LED's, simplifying operation. The ST-5100 provides power flexibility by utilizing either its rechargeable, internal batteries or AC line-power when connected with included AC adapter. Ergonomic handle grip with trigger style activation lessens arm strain when holding for long periods. Quick and easy flash-control adjustment with x2 /÷2 combined with fine tuning +/- buttons enables quick and precise flash-rate setting. Flash output rate can also be controlled with an external sensor wired with included connection cable.
These features make the ST-5100 ideal for quality inspection and preventive maintenance of automated motion equipment.
- Speed Sensing Laser

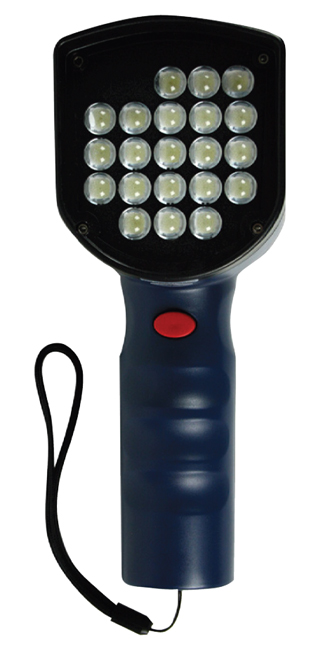

- Large 21 LED array creates large, bright viewing area

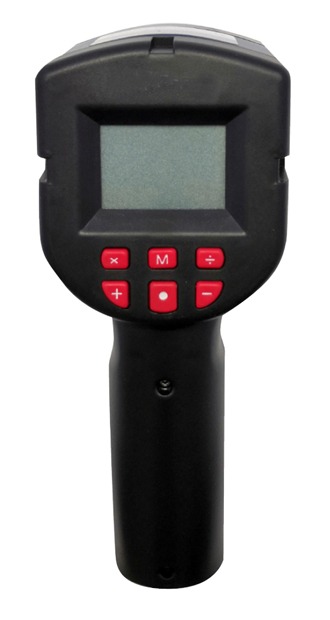

- Quick and easy flash-control adjustment with x 2/ ÷ 2 combined with fine tuning +/- buttons enables precise flash setting
- Backlit LCD Display aids viewing in poorly lit areas
- Large handle grip with trigger style activation lessens strain holding for long periods
- Internal, fast-charge rechargeable battery
- External sensor flash activation capability with separate sensor wired with included connection cable
- Sturdy ABS enclosure
- CE and RoHS Approval
- 1-Year warranty
- NIST Traceable Calibration Certificate is OPTIONAL.
| Flash Rate Range | 30 to 120,000 FPM ; 0.5-2000 Hz |
| Accuracy | 0.01% ±1 digit of F.S. @ 77° F (25°C) |
| Lux Rating (Approx.) | 6000 FPM & 85 Brightness: Distance 8˝ (20 cm) 9500 lx with 7˝ (178 mm) irradiation dia., Distance 20˝ (50 cm) 2275 lx with 11˝ (279 mm) irradiation dia. 1500 FPM & 85 Brightness: Distance 8˝ (20 cm) 4250 lx with 7˝ (178 mm) irradiation dia., Distance 20˝ (50 cm) 1375 lx with 11˝ (279 mm) irradiation dia |
| Lamp Lifetime | Approximately 3~5 years depending on usage. |
| Display | Backlit LCD |
| Resolution | 30 ~12,000 FPM = 0.1 FPM; 12,001~120,000 FPM = 1 FPM; 0.5~2000 HZ = 0.1 Hz |
| Flash Duration | 0.1°- 2.5° = 1-100 on display |
| Power Requirement | 100-240 VAC 50/60Hz |
| Battery | Lithium DC 12.6V 2600 mAh |
| Battery Life | Approx. 5 hours depending on settings |
| External Sensor Input | 12 V Pulse |
| Sensor Power Supply | 12 V dc up to 200 mA |
| Input Pulse Width | Over 50 μs |
| Temperature Limits | 32-85°F (0-35°C) |
| Humidity Limits | 35 to 85% RH |
| Product Weight | 0.62 lb (280 g) |
| Product Dimensions | 9 x 3.4 x 1.6" (228 x 86 x 40 mm) |

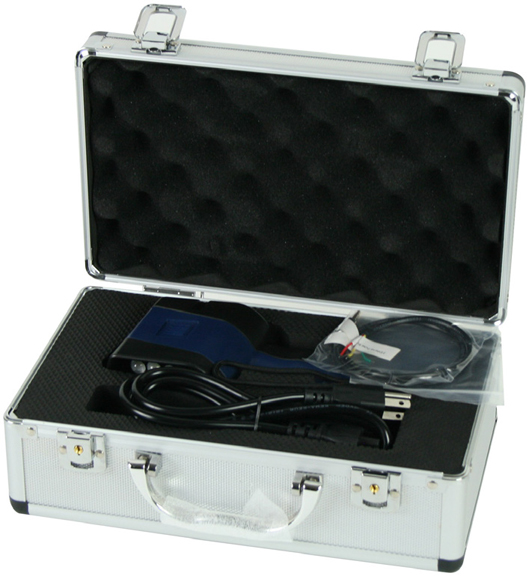

Kit includes: ST-5100 LED Stroboscope, AC power adapter, Sensor Input Cable and Carrying Case
| Item | Description | Price | ||
|---|---|---|---|---|
Portable LED Stroboscope, Speed Sensing Laser, Battery Power, 100-240 VAC Input | $550.00 | |||
| Accessories | ||||
NIST-STROBE-IN | NIST Traceable Certificate of Calibration for Stroboscopes | $175.00 | ||
