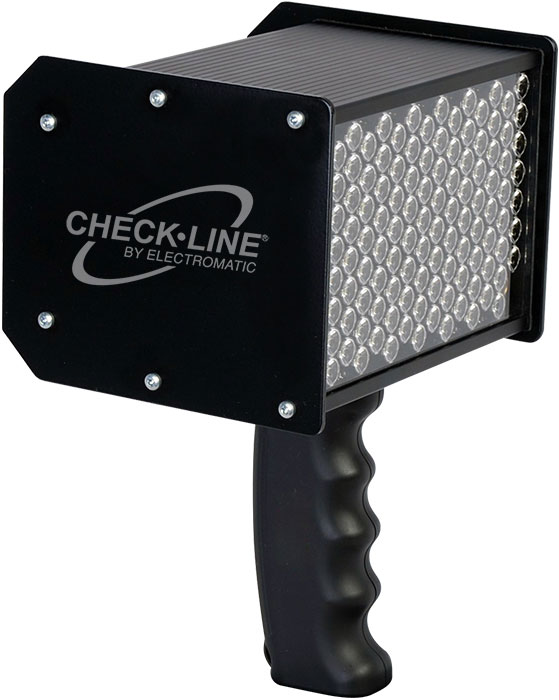

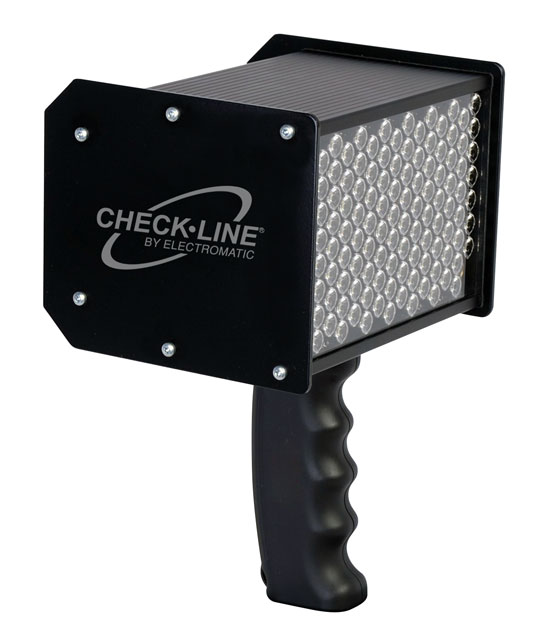

The Checkline QBS-LED is a hand-held, battery-powered stroboscope featuring 118 extremely bright LEDs for the highest light output in its class. Designed for machinery observation, visual inspection and motion analysis, its robust design is suitable for use in the toughest industrial environments.
The QBS-LED features a robust aluminum housing fitted with forty long-life, high-performance LEDs providing a peak brightness of 10,000 Lux and convenient adjustment of flash duration to easily select the optimal balance of brightness and image sharpness. A built-in Lithium-Ion battery provides up to seven hours of continuous use on a single charge. It is supplied with a universal battery charger (100-240VAC) with USA, Euro and UK plug adapters.
The strobe is extremely easy-to-use, as functions such as flash rate and brightness adjustments are separated from the special functions that are found a separate menu. The special functions include phase shift, internal/external trigger selection, flash delay, divider and "Slow Motion" mode.
The QBS-LED uses the "strobe effect" whereby when the flash rate is equal to the rotational speed, the target will appear "frozen". Typical applications include; motion and vibration analysis, balancing of rotating shafts, fans, cams, high-speed motion analysis of speakers or ink-jet printing and more. Ideal for use in the textile, paper making, sheet metal production, automotive and printing industries.
Built-In Laser Light Source provides a Non-Contact "Tachometer Mode" when used in combination with reflective tape. It also features a unique "Auto-Sync" feature using the Laser Tachometer Mode to automatically set the correct flash rate to instantly "freeze" the rotating target without requiring any adjustment by the end-user. It also features a "Slow Motion" Mode that allows the user to offset the flash rate to put the "frozen" image into virtual "slow-motion".
Also know as SKF TKRS 41 and A4-3550
- Traceable Calibration Certificate provided

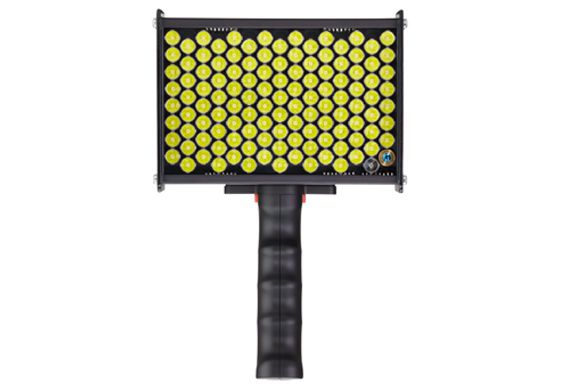

- 118 High Power LEDs produce 10000 Lux Peak Brightness
- Flash range of 30 - 300,000 fpm (0.5-5000 Hz) with user-selected units of Hz or FPM (Flashes Per Minute)
- Selectable units of "FPM, "Hz" or "1/MIN"

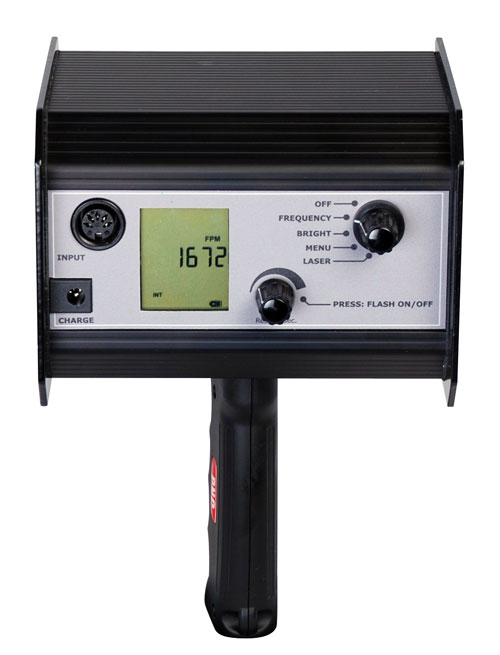

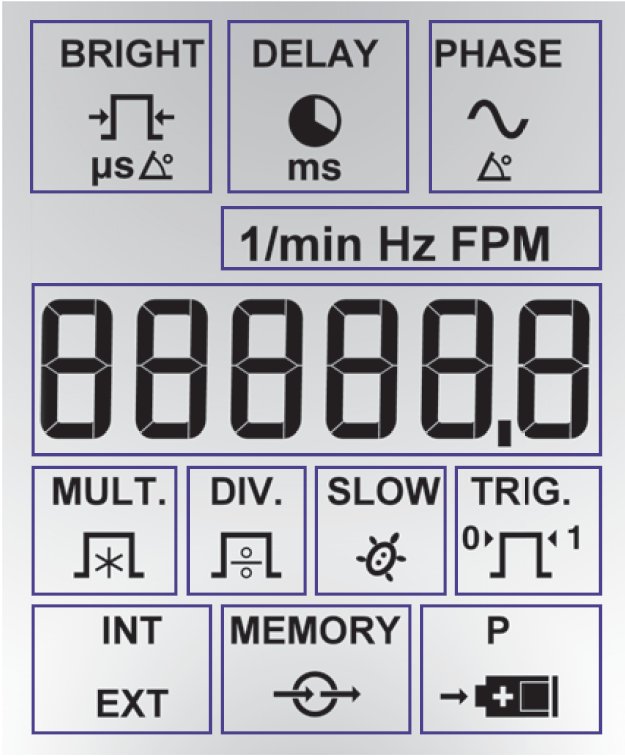

- Backlit LCD Display for optimum viewing in all lighting conditions
- Built-In Laser Light Source provides a Non-Contact "Tachometer Mode" when used in combination with reflective tape
- "Auto-Sync" feature uses the Laser Tach Mode to instantly "freeze" rotating target without any adjustment
- "Slow Motion" Mode allows user to offset the flash rate to put the "frozen" image into "slow-motion" (External Trigger Mode only)
- "PRO Mode" provides additonal functions including Multiplier, Delay and Memory (5 User-set Values)
- Built-In Litium-Ion battery provides up to five hours of continuous operation on a single charge. Battery status is shown on LCD display
- Adjustable flash duration allows for optimal tuning of brightness and image sharpness for every application
- Additional features include "Phase Shift" and Internal/External Trigger
- Threaded mounting holes for fixed mount applications
- Rugged, lightweight aluminum housing with an ergonomic handle, convenient operator controls and backlit LCD display
- Supplied with universal AC battery charger. Can also be used to continuously power the QBS-LED for fixed-mounted use
- Made in Germany
- CE Certified with 1-Year Warranty
| Number of LEDs | 118 |
| Flash Rate | 30 - 300,000 FPM (0.5 - 5000Hz) |
| Accuracy | ± 0.02% (± 1-digit/±0.025usec) |
| Flash Duration | Adjustable (1 usec up to 2000 usec) |
| Resolution | ± 0.1 FPM (30 - 999) ± 1 FPM (1000 - 9999) ± 10 FPM (10,000-300,000) |

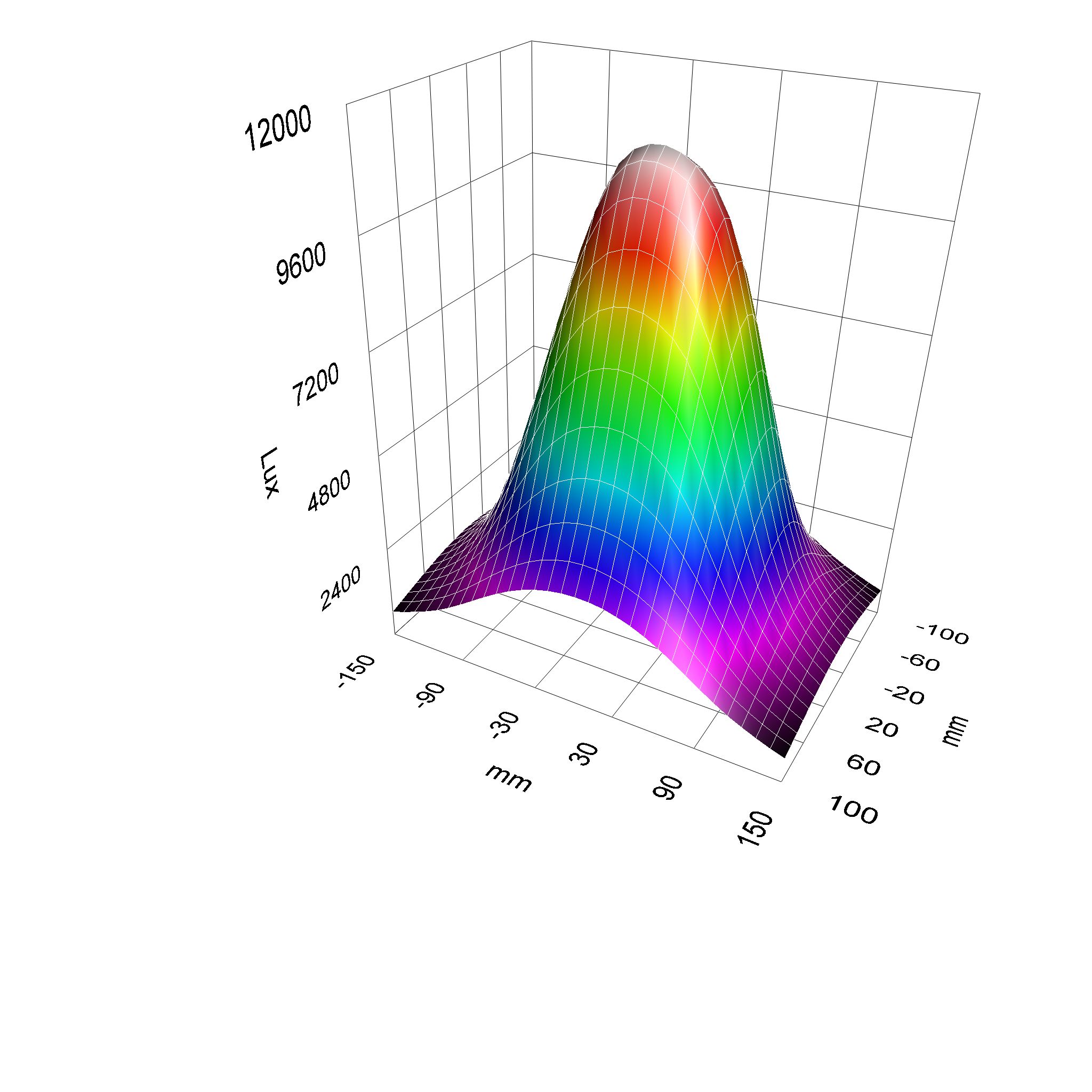

| Brightness | approx. 8,000 Lux @ 1° Sharpness & 300 mm (12 inch) distance |
| Display | LCD, multiple lines |
| Flash Color | Approx. 5,000 - 8000 K |
| Power | Built-In Lithium-Ion rechargeable battery, 3100 mAh |
| Housing Material | Aluminum |
| Dimensions | 150 x 130 x 112 mm / 6 x 5.1 x 4.4 inch |
| Weight | 1.15 Kg (2.5 Lbs) |
| Temperature Range | 0° - 40° C / 32° - 104° F |
| Battery Life | approx. 2:30 Hours @ 4,000 Lux (0.50°) approx. 5:00 Hours @ 2,000 Lux (0.25°) |
| ReCharging Time | 6-8 hours (for complete charge from EMPTY) |
| Warranty | 1 Year |
| Default Settings | FREQUENCY=1000 FPM, BRIGHT=1°/166usec, PHASE=0, TRIGGER=INT, Display Units=FPM, Miltiplier=x1, Bright Units=deg, Delay=0msec, Divider=1, Slow=0, Trigger=0(rising) |
| Housing Protection | IP30 |
| Mounting Holes | 1x 1/4"-20UNC (in center) 2x M5 Threaded Holes (60 mm c:c) |
| Trigger Input Signal | 3...30 V / max. 5 mA (Isolated optocoupler) DIN 41524 5-pin standard plug Uout = 24V DC, 60 mA switchable trigger input |
| Trigger Output | not available |
| Certification | CE (as per EU norms) |
| Item | Description | Price | ||
|---|---|---|---|---|

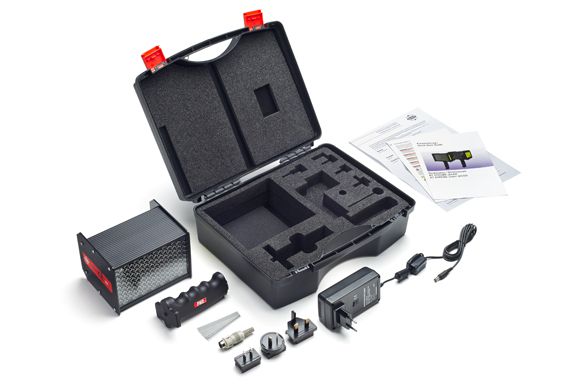

Portable, Battery Powered LED Stroboscope with Auto-Sync, Complete Kit | $2,795.00 | |||
| Accessories | ||||
Rubber Edge Protectors for LS-3-LED, QB-LED & QBS-LED | $65.00 | |||

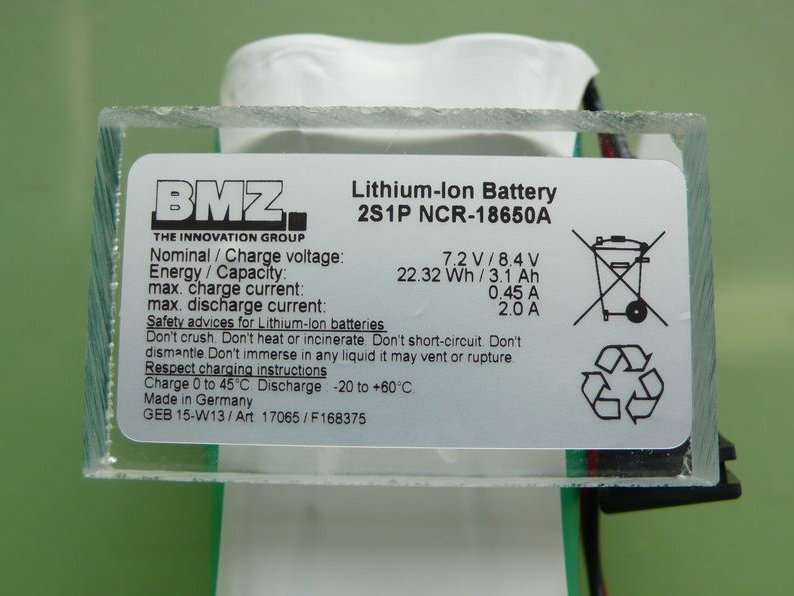

QB-BAT | Rechargeable Lithium-Ion Battery Pack for QB-LED & QBS-LED | $125.00 | ||
Replacement Universal AC-Adapter/Charger (100-240 VAC) | $80.00 | |||
