Flash Range: 30 - 300,000 FPM (5000Hz, max)
Flash Brightness: up to 3000 Lux (@ 6000 FPM)

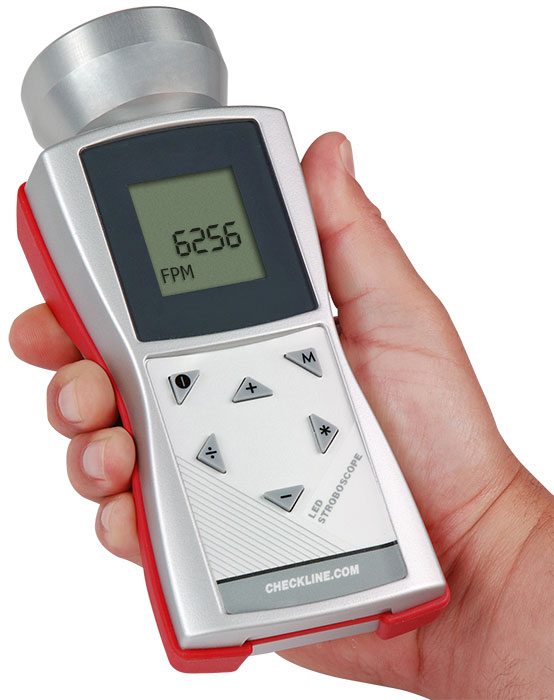

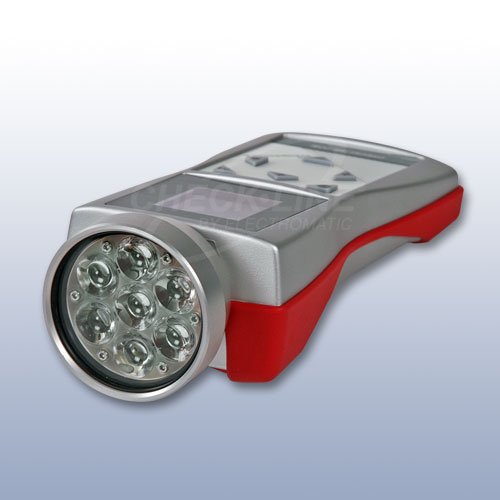

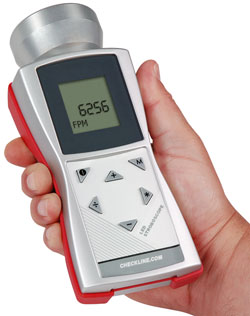

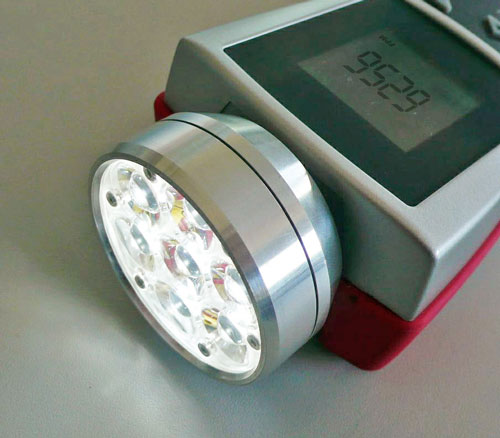

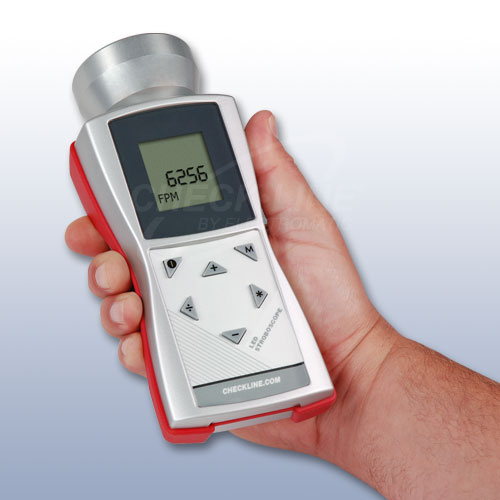

Designed for maximum performance, portability and ease of use, the DS-2000LED is a hand-held battery-powered LED Digital Stroboscope for use in speed measurement as well as for motion analysis. It is fitted with seven (7) state-of-the-art, super-bright LEDs mounted in a precision-machined aluminium head with optimized optics, providing the highest light output of similar strobes on the market. Produces up to 3000 Lux!
The DS-2000LED can operate even at the highest flash rates for up to six hours continuously on a single set of three (3) standard "AA" batteries . Keypad controls adjust the flash rate in single increments as well as special keys for 2X and ÷2 functions. Other user-programmable settings include flash duration, phase shift, delay and much more.
Supplied in a high-impact plastic housing with rubber sleeve providing additional protection as well as improved grip for the operator. Lifetime LEDs do not wear-out or need replacement making this product ideal for use on the factory floor, in the field or in the laboratory. Applications include ideal for speed, motion and vibration analysis, on rotating shafts, fans, cams, high-speed motion analysis for speakers or inkjet printing and more.
Flash Brightness: up to 3000 Lux (@ 6000 FPM)
Designed for maximum performance, portability and ease of use, the DS-2000LED is a hand-held battery-powered LED Digital Stroboscope for use in speed measurement as well as for motion analysis. It is fitted with seven (7) state-of-the-art, super-bright LEDs mounted in a precision-machined aluminium head with optimized optics, providing the highest light output of similar strobes on the market. Produces up to 3000 Lux!
The DS-2000LED can operate even at the highest flash rates for up to six hours continuously on a single set of three (3) standard "AA" batteries . Keypad controls adjust the flash rate in single increments as well as special keys for 2X and ÷2 functions. Other user-programmable settings include flash duration, phase shift, delay and much more.
Supplied in a high-impact plastic housing with rubber sleeve providing additional protection as well as improved grip for the operator. Lifetime LEDs do not wear-out or need replacement making this product ideal for use on the factory floor, in the field or in the laboratory. Applications include ideal for speed, motion and vibration analysis, on rotating shafts, fans, cams, high-speed motion analysis for speakers or inkjet printing and more.
- Traceable Calibration Certificate provided

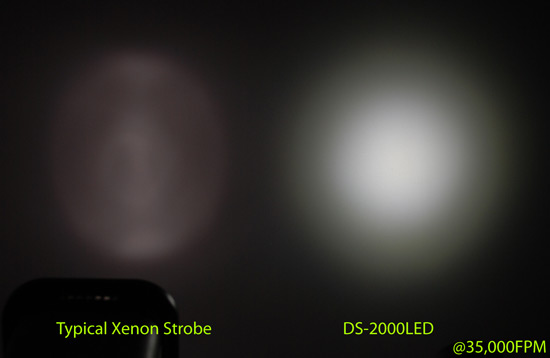

- Produces the brightest flash and sharpest image over the entire range to 300,000 FPM
- Lifetime LEDs do not wear-out or need replacement

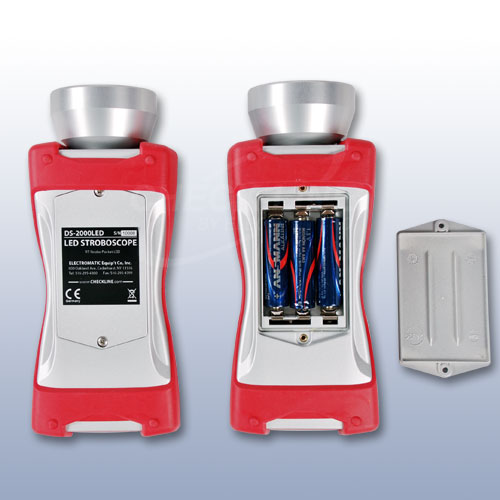

- Three (3) AA-Batteries provide six hours of continuous use operation

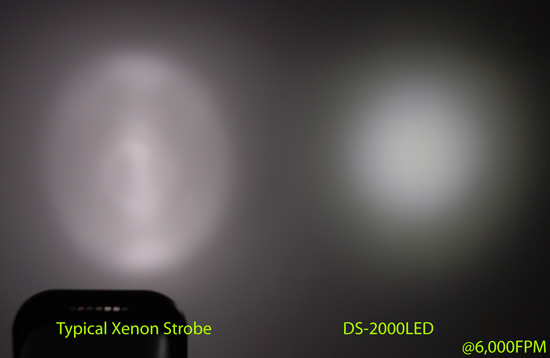

- Market-leading 3000 Lux brightness (measured at 6000 fpm at a distance of 12")
- Intuitive controls allow user to quickly adjust flash rate and shift phase
- User-selected units of Hz or FPM (Flashes Per Minute)
- IP 65 rated housing provides protection from water jets
- Made in Germany
- 2-Year warranty
at 12"/30 cm Distance, 6000 flashes/min (FPM)

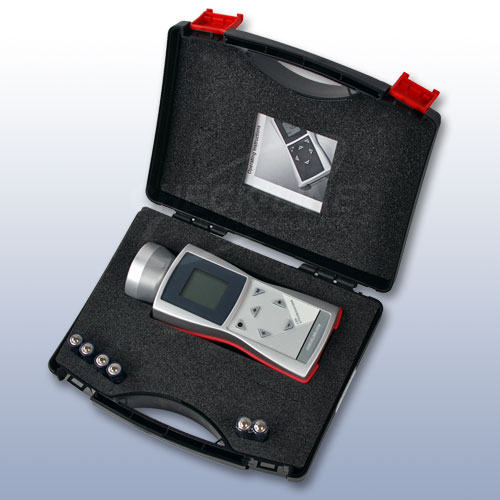

DS-2000LED Strobe is supplied in foam-fitted carrying case with 2 sets of 3x-AA batteries (6 batteries total), Traceable Calibration Certificate and Operating Instruction Manual.
| Frequency Range | 30 - 300,000 FPM (0.5 - 5000Hz) |
| Flash Duration | Adjustable (1 usec up to 8522 usec) |
| Accuracy | ± 0.02% ± 500ns |
| Resolution | ± 0.1 FPM (30 - 999) ± 1 FPM 1000+ |
| Brightness | 3000 Lux @ 6000 FPM / 30cm (12 inch) |
| Protection Class | IP65 (Protection from Dust and Water Jets) |
| Display | LCD, multiple lines |
| Certification | CE (as per EU norms) |
| Flash Color | Approx. 6.500 K |
| Power Supply | 3x AA size batteries or 3x NiMH rechargeable batteries |
| Housing Material | Aluminum / ABS Heavy duty design |

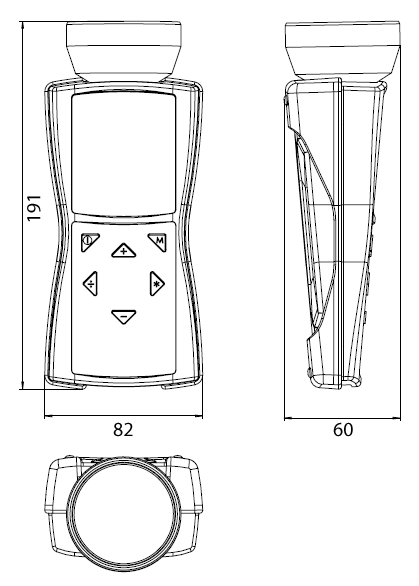

| Dimensions | 191 x 82 x 60 mm / 7.5 x 3.2 x 2.4 inch |
| Weight Approx | 400g (including batteries) |
| Temperature Range | 0° - 45° C / 32° - 113° F |
| Battery Life | NiMH: approx 11h at 6.000 FPM Disposable: approx 6 h at 6.000 FPM |
| Warranty | 2 Years |

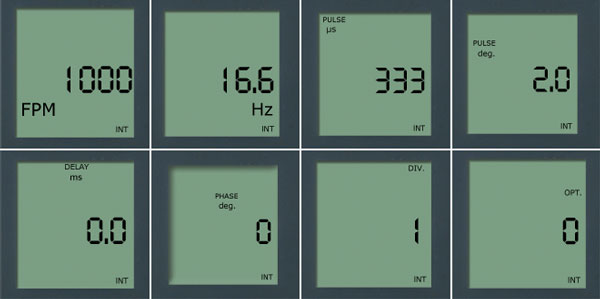

| Default Settings | FPM 1000, Hz 16.6, PULSE µs 333, PULSE deg 2°, DELAY ms 0.0, PHASE deg 0°, DIVIDER 1, OPTION 0 |
| Item | Description | Price | ||
|---|---|---|---|---|
LED Stroboscope Complete Kit | $595.00 | |||

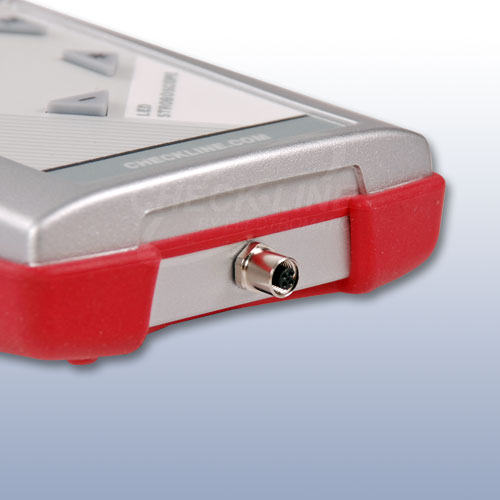

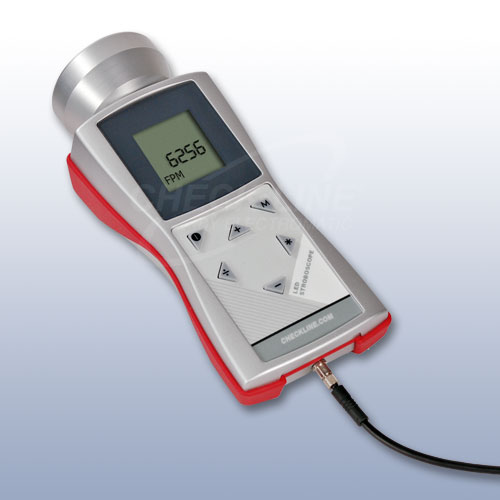

LED Stroboscope Complete Kit with external trigger input/output in carrying case | $895.00 | |||
Pocket Laser LED Stroboscope Complete Kit with Laser Tach Mode and Auto-Sync Function [A4-3005] | $695.00 | |||
Pocket Laser LED Stroboscope Kit with Laser Tach Mode & Auto-Sync Function - external trigger input/output | $995.00 | |||
| Accessories | ||||
ISO-17025-TS | ISO-17025 Certificate for Tachometer or Stroboscope | $295.00 | ||
BATT-RC4AA-WC | 4-pack AA Ni-MH Rechargeable Batteries & Charger Kit | $35.00 | ||

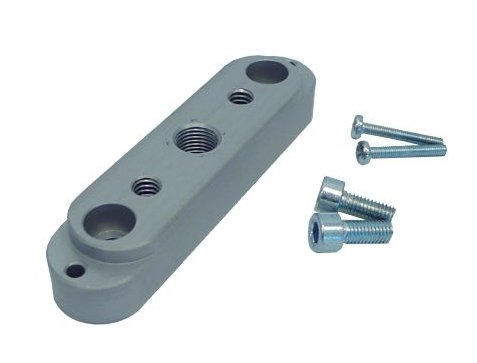

DS-2000LED-TPM | Screw-on Tripod Mount for DS-2000LED [N0001.618] | $45.00 | ||
Tripod for Tachometers and Stroboscopes | $35.00 | |||
