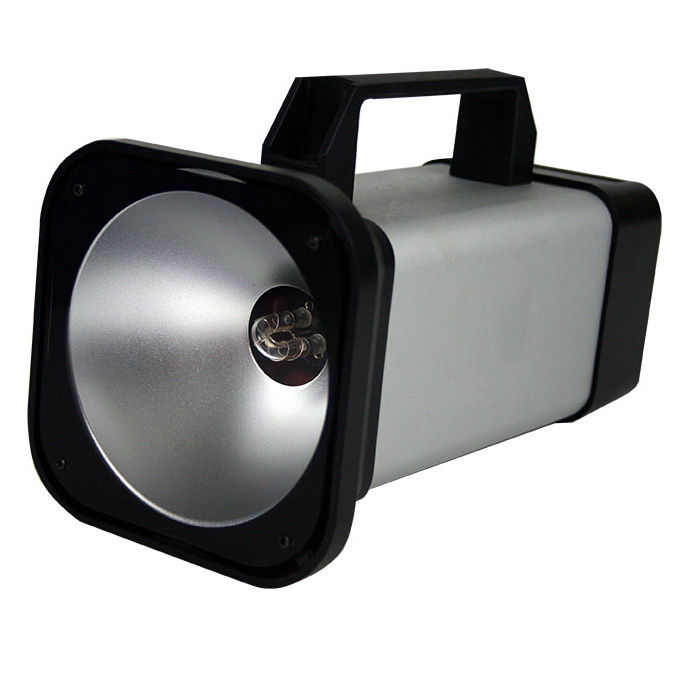

The DT-735 is a portable, highly stable, industrial-quality stroboscope for non-contact inspection and observation of moving parts by providing the user the illusion of stopped or slowed-down equipment movement.

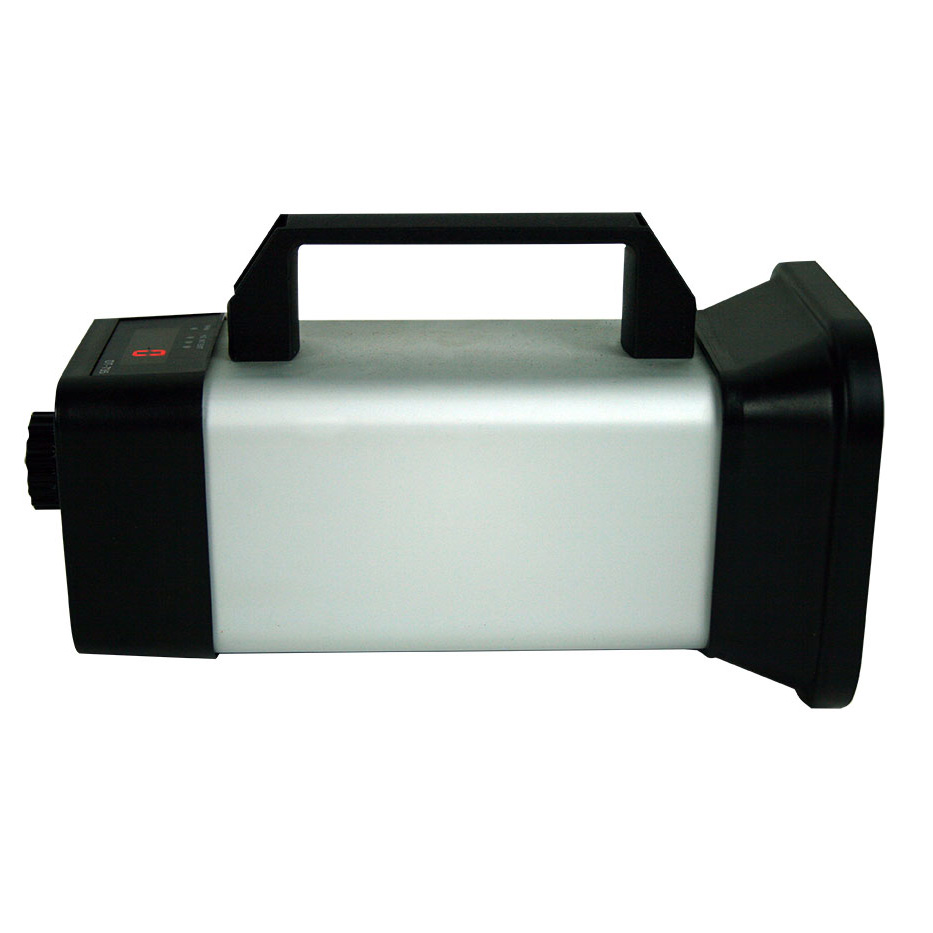

A rugged metal enclosure allows the DT-735 to withstand harsh industrial usage. The internal rechargeable battery and included top and bottom handles aid in portability and usage flexibility. The control adjustment settings allow the flash rate to be readily altered by the user to visually inspect rotating or reciprocating machinery such as gear teeth, rotors, shafts, rewinders, printing presses, etc. all without stopping production. These features make the DT-735 ideal for quality inspection and preventive maintenance of automated motion equipment.
Does not have Phase-Shift function
- NIST-Traceable Calibration Certificate & Test Report optionally available
- Can be operated directly from AC-Power for continuous use

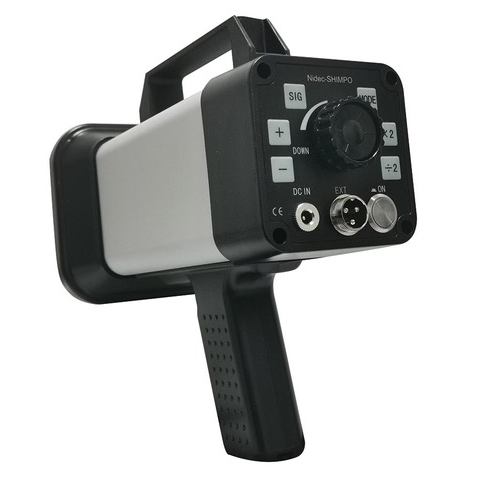

- Includes top and bottom handle to allow user operation preference

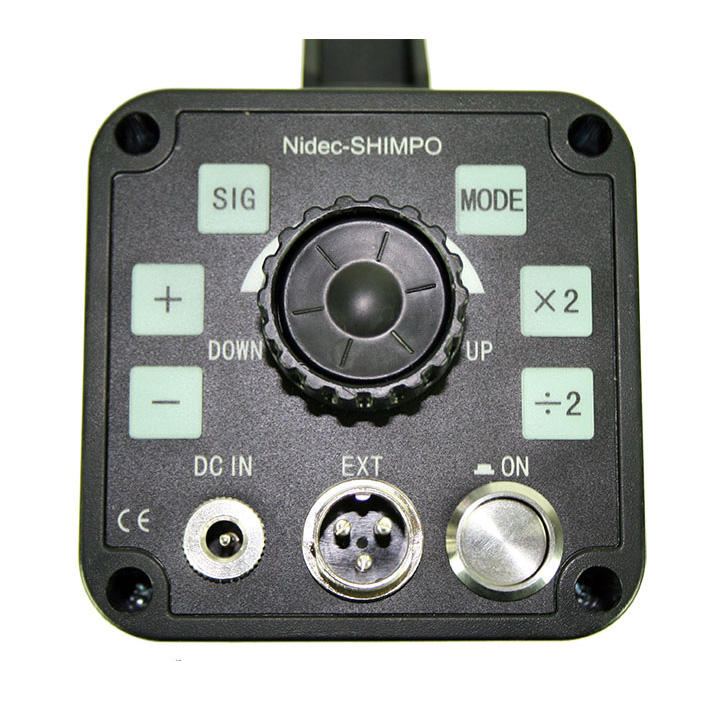

- Easy-to-use controls with bright LED display
- Made in China
- 1-year warranty
- CE Certified
| Flash Range | 60 - 12,000 FPM |
| Accuracy | ± 0.01% |
| Resolution | 0.1 from 60-9999; 1 from 6,001-12,000 |
| Display | 5 digits 0.4” (10 mm) height |
| Flash Tube | Xenon ≤ 45W |
| Tube Life | 50,000,000 flashes |
| Flash Duration | 10-30 μs automatically adjusts with flash rate |
| External Trigger Input | 5V ~ 12V pulse signal (high level trigger) up to 50 mA |
| Lux Rating | 8” (20 cm) Distance = 1550 lx @ 1500 fpm, 2350 lx @ 6000 fpm with 15.5” (400 mm) irradiation diameter. 20” (50 cm) Distance = 650 lx @ 1500 fpm , 580 lx @ 6000 fpm with 23.5” (600 mm) irradiation diameter |
| Battery Type | NiMH, 12V 2500mAh |
| Battery Life | 1.5 to 2 hours depending on settings |
| Charging Time | 5 hours to full charge |
| Power Requirement | 100-240 VAC 50/60 Hz |
| Operating Temperature | 32 - 104°F ( 0 - 40°C ) |
| Dimensions | 9.8 x 4.7 x 4.7” (250 x 120 x 120 mm) |
| Product Weight | 2.75 lb (1.25 kg) |
| Package Weight | 4.1 lbs (1.86 kg) |
| Warranty | 1 year |
| Certification | CE |
| Included Accessories | Upper and Lower Handle, AC charger with cable |
| Item | Description | Price | ||
|---|---|---|---|---|
Battery Powered Xenon Stroboscope, 60-12,000 fpm with Universal AC Charger - WITHOUT Phase Shift | $575.00 | |||
Battery Powered Xenon Stroboscope, 60-12,000 fpm, with Carrying Case, Spare Flash Tube, and Universal AC Charger - WITHOUT Phase Shift | $750.00 | |||
| Accessories | ||||
NISTCAL | NIST Traceable Calibration Certificate | $100.00 | ||
IEC-C5-EURO | IEC C5 to Euro Plug, 6ft / 2m Cable (Mickey Mouse Connector) | $15.00 | ||
SG-735 | Rubber Strobe Guard for DT-735 & DT-311D Stroboscopes. Front Bezel only. | $35.00 | ||

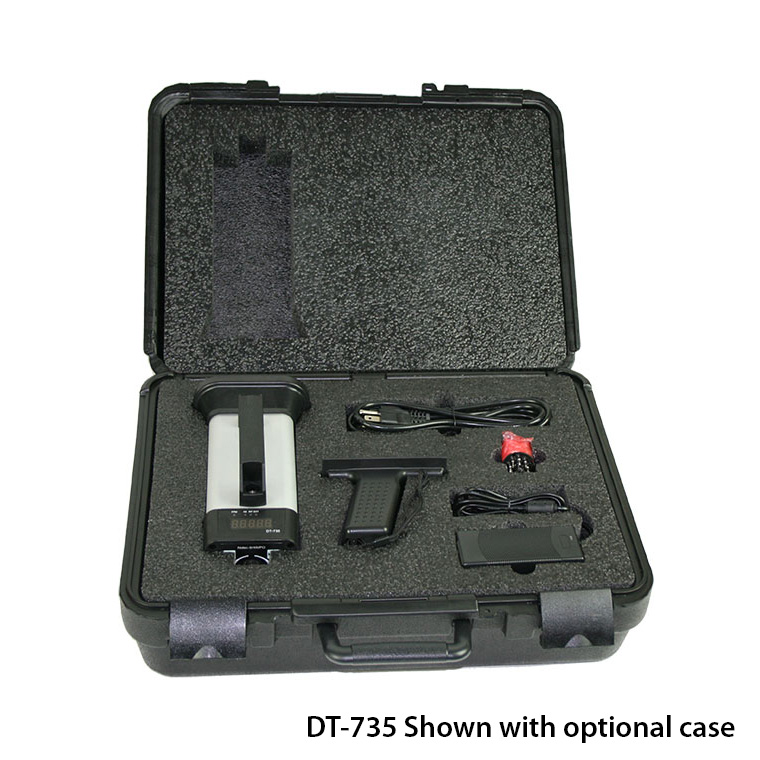

CARRY-CASE735 | Carrying Case for DT-735 Stroboscope | $180.00 | ||
FLASHTUBE735 | Flashtube for DT-735 and DT-311D Stroboscope | $47.00 | ||
DT-CHRG-735 | AC Adapter/Charger, Universal Power Supply for DT-735, 100-240 VAC | $70.00 | ||
BAT-735 | Rechargeable Battery for DT-735 Stroboscope, NiMH, 12V 2500mAh | $75.00 | ||
735-EXTSIG-CBL | 3 Pin External Input Cable for DT-735 Stroboscope | $70.00 | ||
735-HANDLE-BOT | Replacement Bottom Handle for DT-735 Stroboscope | $25.00 | ||
735-HANDLE-TOP | Replacement Top Handle for DT-735 Stroboscope | $20.00 | ||
