The DT-315AEB and DT-315AX are out of stock, we do not know if, or when they will be available.
Flash Range: 40-35,000 RPM/FPM

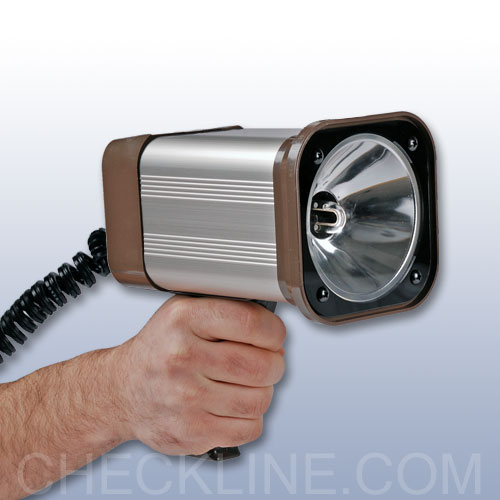

Portable, highly stable, and accurate, industrial-quality tool for non-contact RPM measurement, inspection, and observation of moving parts by "freezing" or "slowing down" the action.
- NIST-Traceable Calibration Certificate & Test Report optionally available
- Highest accuracy and most stable flash rate
- Accepts external trigger input and provides synchronizing pulse output
- Easy-to-read LED display
- Phase shift for best view and flash photography
- Easy-to-operate controls
- Flash rate control

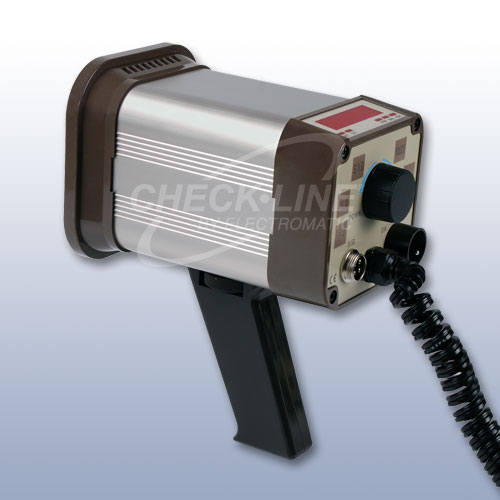

- Detachable pistol-grip handle
- Instant double and half-rate flash selection for error-free reading
- Provides 12 V DC power for external sensors
- Made in Japan
- 1-Year Warranty
Hard plastic carrying case with custom molded insert allows for safe storage and easy transportation. Provides storage space for the DT-315A, AC adapter, and accessories.

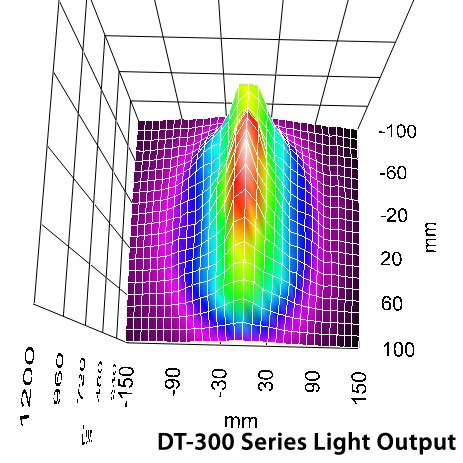

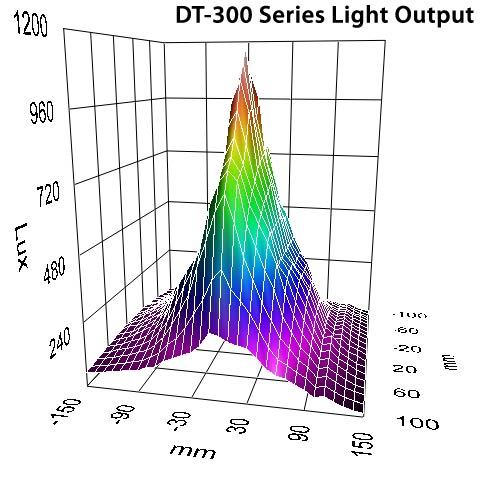

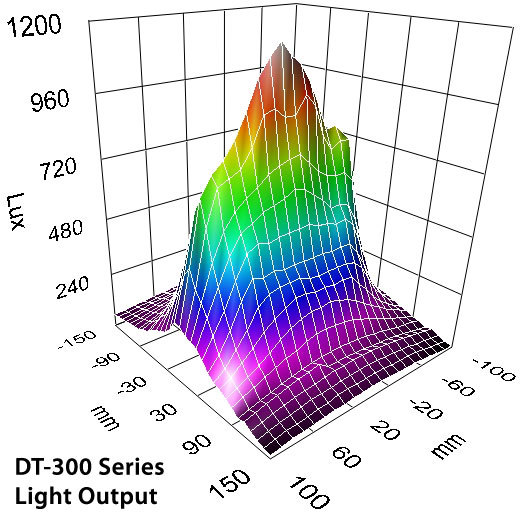

at 30 cm Distance, 6000 flashes/min (FPM)
| Flash Range | 40-35,000 FPM |
| Accuracy | Internal Mode: ±0.01% of reading External Mode: ±0.01% or ± 1 digit |
| Resolution | 0.1 FPM: 40.0 - 4,999.9 FPM 0.2 FPM: 5,000 - 7,999.8 FPM 0.5 FPM: 8,000 - 9,999.5 FPM 1 FPM: 10,000 - 35,000 FPM |
| Drift | ±0.01% per °C |
| Update Time | Internal Mode: 0.2 seconds External Mode: ±0.01% or ± 1 digit |
| Input Signal | LO level: 0-0.4 VDC HI level: 2.5 - 12 VDC -- or open collector (npn) pulse width 50us min |
| Output Signal | Synchronous, 400 µs pulse, 0 to approx. ± 12 V DC 1000 ohms impedance |
| Display & Rate | Divide or multiply by 2, selectable |
| Operating Temperature | 32-104 °F (0-40 °C) |
| Display | 5 digits, 10 mm high, red LED |
| Flashtube | Xenon, 10 W maximum |
| Flash Duration | 10-30 µs |
| Sensor Power Supply | 12 VDC ± 0.5V (50ma) |

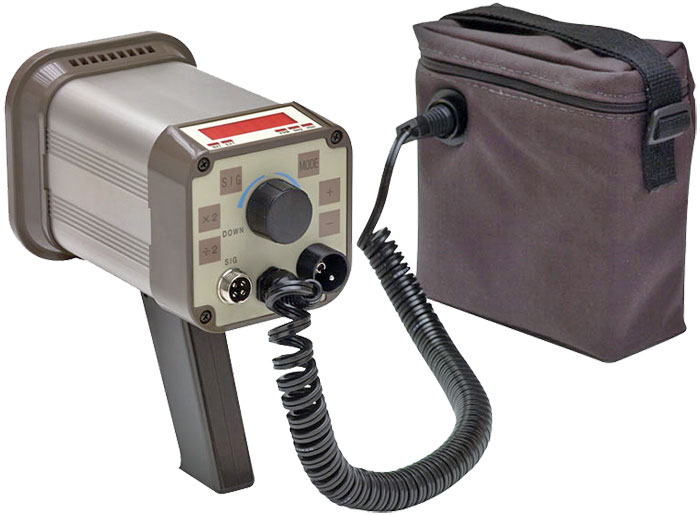

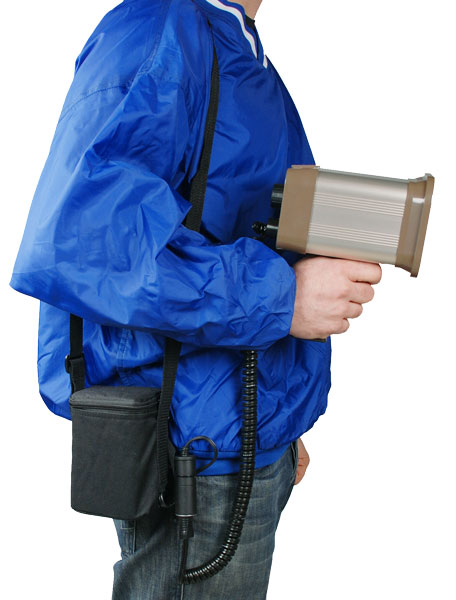

| Power Requirements | External Rechargeable 12 V battery Includes Battery Charger 115V AC (DT-315AEB) or 230V AC (DT-315AEB-2) |
| Weight | 4.4 lbs. (2 kg) |
| Dimensions | 4.7 x 5.6 x 9.7" (120 x 141 x 248 mm) |
| Warranty | 2 Years |
| EXTERNAL MODE ONLY | |
| Phase Shift | 0 - 359° with 1° resolution or 0 - 333 ms from 200 - 3,000 FPM |
| Input Impedance | 10,000 ohms |
| Item | Description | Price | ||
|---|---|---|---|---|
Digital Stroboscope with External Battery - Please contact us for pricing and availability. | $ | |||
Digital Stroboscope with External Battery (230V ADAPTER) - Please contact us for pricing and availability. | $ | |||
Digital Stroboscope without battery pack or charger - Please contact us for pricing and availability. | $ | |||
| Accessories | ||||
NISTCAL | NIST Traceable Calibration Certificate | $100.00 | ||
311FH Spare flash tube for DT-300 Series Strobes - FLASHTUBE311-2 | $55.00 | |||
Protective Rubber Caps for DT-300 Series Strobes | $99.00 | |||
Articulating Swing Arm for Stroboscopes | $320.00 | |||
Spare Battery with charger (100-240V) for DT-315EAB | $0.00 | |||
Input / Output Connector for DT-311A, DT-315A Stroboscopes | $30.00 | |||
Tripod for Tachometers and Stroboscopes | $35.00 | |||
311RT | Spare Flash Tube Removal Tool - BDTA3100080 | $20.00 | ||
DT-315AX-12VF | Female Socket for 12V Plug with Bare Leads | $15.00 | ||
