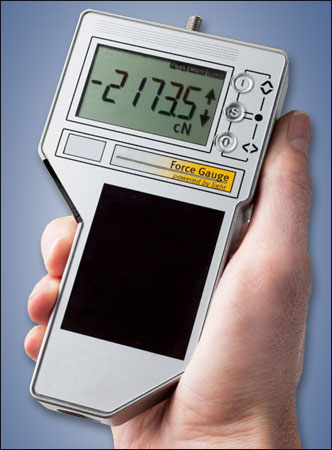

Digital Force Gauge FMI-S20 series are based on their own power supply by the solar cell especially for mobile use in quality control and for the measurement of tear or rupture forces in the industrial environment suited.
The extremely robust sensor module is integrated in the housing such that an optimal overload protection is accomplished by up to 500%. The measured values are in a big screen displayed either in the SI unit of Newton or in units of weight.
The force or pressure for train is on the M6-wave measurement, standard adapters are included. For test stand mounting threads are provided on the housing.
The simple application of the meter FMI-S20 in combination with a high accuracy and affordability are hallmarks of this instrument.
The extremely robust sensor module is integrated in the housing such that an optimal overload protection is accomplished by up to 500%. The measured values are in a big screen displayed either in the SI unit of Newton or in units of weight.
The force or pressure for train is on the M6-wave measurement, standard adapters are included. For test stand mounting threads are provided on the housing.
The simple application of the meter FMI-S20 in combination with a high accuracy and affordability are hallmarks of this instrument.
- Always operable through independent power supply with photovoltaics or USB interface
- Automatic display adjustment
- Overload protection to 500% through rugged die-cast aluminum housing
- High measurement rate. Exact version for the determination of peak rupture or rice with 0.2% accuracy
- Values can be shown in any of the following engineering units: cN, N, gf, kgf, oz and lb.
| Model | Range | Resolution |
|---|---|---|
| FMI-S20B5 | 0 - 50 N | 0.05 N |
| FMI-S20C1 | 0 - 100 N | 0.1 N |
| FMI-S20C5 | 0 - 500 N | 0.5 N |
| FMI-S20K1 | 0 - 1000 N | 1 N |
| FMI-S20K5 | 0 - 5000 N | 5 N |
| Accuracy | @ 23°C (F.S.): +/- 0.2% (+/- 1 digit) Tk (absolute): Automatic balancing - Auto-Tara Tk (relativ): +/- 0.02% (°K) |
| Measuring Principle | Bi-directional sensor with strain gauges and high-speed data processing μProzessor |
| Operation Mode (Standard) | Display the current value, either in c-N, N, g-f, Kg-f, oz or lb Maximum levels from tensile and compression (pointer function) |
| Operation Mode (Peak) | Maximum levels from tensile and compression (pointer function) |
| Limit Value | 2 Separately adjustable limits |
| Overload | 500% (F.S.) *bei 5 kN 200% |
| Display | LCD, 5-digit, 12 mm high |
| Display Update (Standard) | 1000 msec, 500 msec, 200 msec or 100 msec (selectable) |
| Display Update (Peak) | 1 msec |
| Power Supply | solar cell |
| Temperature Range | 32 - 104 °F (0 - 40 °C) |
| Weight | 1 lbs (430g) |
| Dimensions | 6 x 3 x 1 in (150 x 82 x 29 mm) |
| Housing Material | Aluminium dye cast |
| Fixing | 2 x M4, 2 x M5, centering holes |
Click for larger image.
The FMI is supplied with flat, notched, cone, hook and chisel accessories with manual in a foam fitted carrying case.
