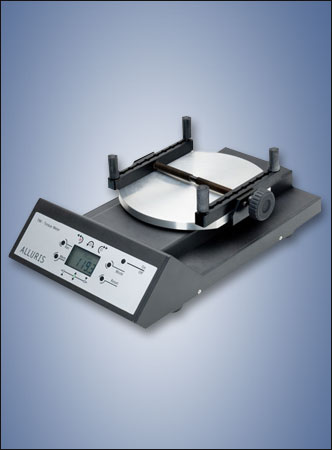

The Torque Meter TMI-200 offers a high accuracy of 0.5% in addition to the ability to compare measured values with reference values and to store data series and statistically. It is therefore particularly suitable for use in quality control lab.
The robust sensor module, designed and protected by an overload of up to 150%, a high resolution combined with a very high overload protection and is bidirectional, therefore, torque capture in both directions.
The robust sensor module, designed and protected by an overload of up to 150%, a high resolution combined with a very high overload protection and is bidirectional, therefore, torque capture in both directions.
- Positive/negative indication through coloured LEDs
- Robust, stable and splashwaterproof (IP44)
- Data memory and USB interface

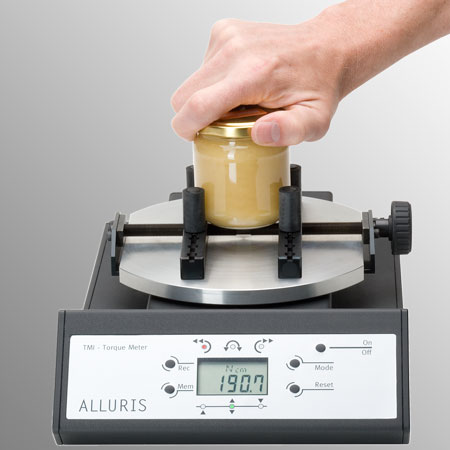

- Accurate measuring of torque for screw tops, armatures, machinery components and tools
- High accuracy of 0.5% and accurate recording of peak value under 1000Hz
| Model | Range | Resolution |
|---|---|---|
| TMI-200B2 |
0 - 18 lbf-in
0 - 20 kgf-cm
0 - 200 N-cm
0 - 2 N-m
|
0.001 N-m |
| TMI-200B5 |
0 - 44 lbf-in
0 - 51 kgf-cm
0 - 500 N-cm
0 - 5 N-m
|
0.001 N-m |
| TMI-200C1 |
0 - 89 lbf-in
0 - 102 kgf-cm
0 - 1000 N-cm
0 - 10 N-m
|
0.01 N-m |
|
|
| Measuring principle | Stain gauge with 12-bit D/A converter |
| Modes of operation | Standard: Display of actual value in N-m, N-cm, Lb-in and kg-cm CW/CCW Rotation: Display of peak value in N-m, N-cm, Lb-in and Kg-cm |
| Accuracy | @ 23°C (F.S.): +/- 0.5% (+/- 1/2 digit) Tk (absolute): Automatic alignment at startup Tk (relativ): +/- 0.02% (°K) |
| Display | LCD, 4 digits, 12mm high with side-display of 7mm |
| Memory | 1000 Measurements |
| Power | Internal NiMH battery | Universal charging device 100 - 240VDC (50Hz) |
| Temerature Range | 0-40°C (-10-50°C, store dry) |
| Weight | 17 lbs (8 kg) |
| Dimensions | 14 x 8 x 4 in(370 x 210 x 120 mm) |
| Housing Material | Aluminium casting, protective PS casing | IP 42 (splash water protection) |
