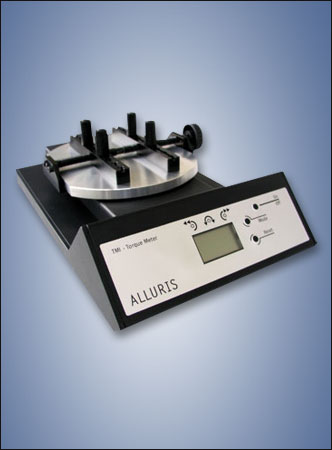

The Torque Meter TMI-100 provides an accuracy of 0.5% in all the available measurement ranges. It is particularly suitable for use in the laboratory and for routine quality measurements in industrial environments.
The robust sensor module, designed and protected by an overload of up to 150%, a high resolution combined with a very high overload protection and is bidirectional, therefore, torque capture in both directions. The measured values are in a large, reversible display, and optionally in the SI unit newton meter or weight units.
The robust sensor module, designed and protected by an overload of up to 150%, a high resolution combined with a very high overload protection and is bidirectional, therefore, torque capture in both directions. The measured values are in a large, reversible display, and optionally in the SI unit newton meter or weight units.
- High accuracy of 0.5% and accurate recording of peak value under 1000Hz
- Robust, stable and splashwaterproof (IP42)
- Accurate measuring of torque for screw tops, amatures, machinery components and tools
| Model | Range | Resolution |
|---|---|---|
| TMI-100B2 |
0 - 18 lbf-in
0 - 20 kgf-cm
0 - 200 N-cm
0 - 2 N-m
|
0.001 N-m |
| TMI-100B5 |
0 - 44 lbf-in
0 - 51 kgf-cm
0 - 500 N-cm
0 - 5 N-m
|
0.001 N-m |
| TMI-100C1 |
0 - 89 lbf-in
0 - 102 kgf-cm
0 - 1000 N-cm
0 - 10 N-m
|
0.01 N-m |
|
|
| Measuring principle | Stain gauge with 12-bit D/A converter |
| Modes of operation | Standard: Display of actual value in N-m and N-cm CW/CCW Rotation: Display of peak value in N-m and N-cm |
| Accuracy | @ 23°C (F.S.): +/- 0.5% (+/- 1/2 digit) Tk (absolute): Automatic alignment at startup Tk (relativ): +/- 0.02% (°K) |
| Display | LCD, 4 digits, 12mm high with side-display of 7mm |
| Power | Universal power supply 100 - 240VDC (50Hz) |
| Temerature Range | 0-40°C (-10-50°C, store dry) |
| Weight | 17 lbs (8 kg) |
| Dimensions | 14 x 8 x 4 in(370 x 210 x 120 mm) |
| Housing Material | Aluminium casting, protective PS casing | IP 42 (splash water protection) |
