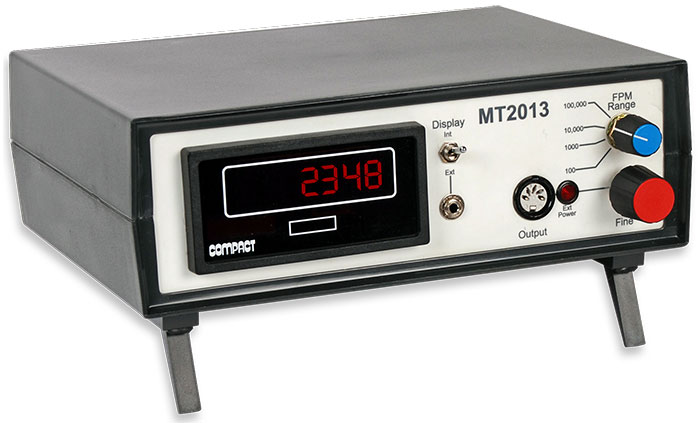

MT2013 Tachometer Calibrator, Stroboscope Calibrator

Made in UK
tachometer and stroboscope calibrator
Click images to enlarge.
The MT2013 Tachometer and stroboscope calibration test system is designed for test and calibration of Digital Optical Tachometers, Optical Speed sensing products and Stroboscopes.

The MT2013 is suitable for Calibration of virtually any make of Optical Tachometer, Optical Speed Sensors and Stroboscopes, in addition, they can be used with Digital Panel Tachometers, Ratemeters, Batch counters and similar pulse related products.

The Calibrator can be used to test Panel and Bench type Tachometers via the pulse output feature and also tests proximity and optical speed Sensors.

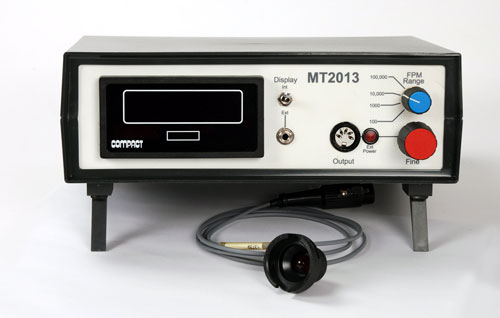

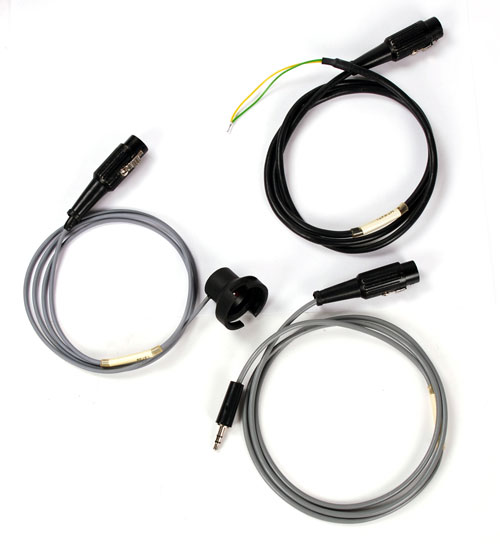

The MT2013 includes a VLS5/J optical speed sensor for stroboscope calibration as well as a DIN to 3.5mm jack plug used for checking the remote input on Compact tachometers and a general purpose DIN to bare leads connector.

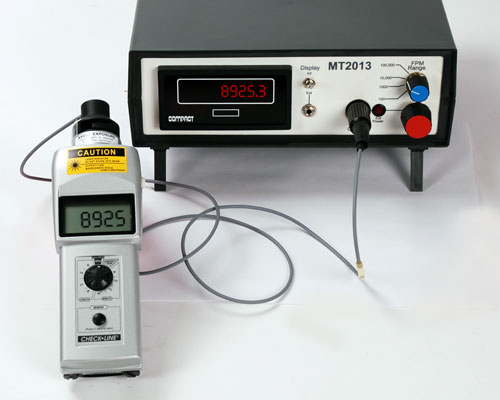

Example of Non-Contact Tachometer Calibration with MT2013

Example of Stroboscope Calibration with MT2013

Features

  • Supplied with UKAS Traceable Calibration Certificate
  • Wide input pulse rate range – 0.05 – 200 KHz using the input divider and scaling features
  • 5 Digit LED display
  • Full scaling facilities up to 5 digits
  • Low speed capability – 3 rpm to 0.001 resolution

Specifications

Digital Display5 Digit LED - displays input or output speeds
Speed Range3 – 100,000 rpm in 4 ranges
4 position Selector switch
Speed AdjustmentFine adjust via multi turn potentiometer
Accuracy± 0.01% ± 1 digit
ResolutionAutoranging max. 0.001 rpm
Output FacilitiesLED attachment for Optical Tachometers TL pulses for Digital Instrumentation
Input FacilitiesOptical Sensors [supplied] ( can be used for Stroboscope calibration), Proximity Sensors
3 wire 10-30vdc types, TTL input & magnetic Sensors
Sensor Supplies5vdc & 12vdc
ControlsSignal in/out switch for Tachometers or Strobes
Input/OutputsStrobe output Via 3.5mm Stereo socket
Signal InputVia 5 pin DIN socket
Sensor PowerVia signal input socket
Power Input110/240vac (dc options by request)

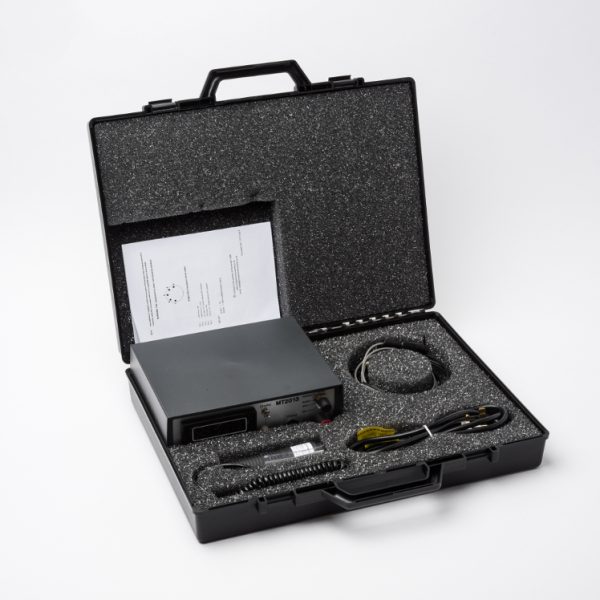

Complete Kit

The MT2013 is supplied with:
• Instruction Manual
• MT2013 Main Calibration Unit
• VLS5/J Speed Sensor
• 3.5mm Jack Plug
• 3 Output Leads
• Carrying Case
• Power Cord (Specify voltage and plug type when ordering)
• Reflective Tape
• Certificate of Calibration

Downloads

Buy Now

Item Description Price
Tachometer and Stroboscope Calibrator (115V or 230V please specify)
$3,335.00
Accessories
ISO-17025-MT2013
ISO-17025 Calibration Certificate for MT2013
$300.00
