WTTM
Motorized Wire Terminal Pull Tester |
2 Models Available
WTTM-110 - Capacity: 110LB/50KG/500N
WTTM-220 - Capacity: 220LB/100KG/1000N

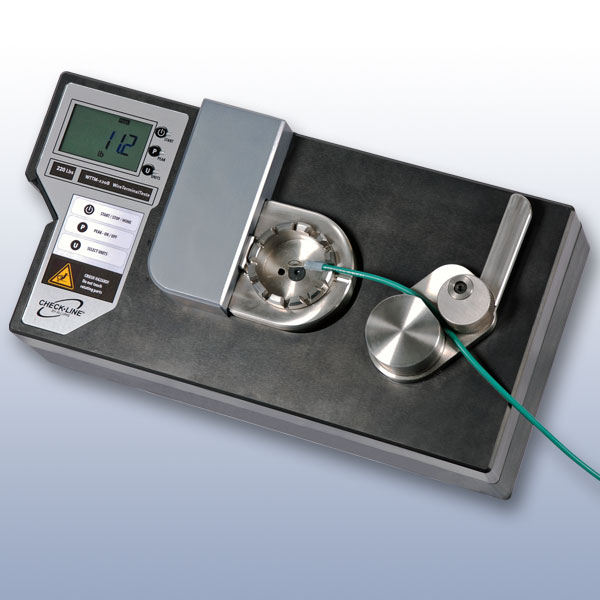

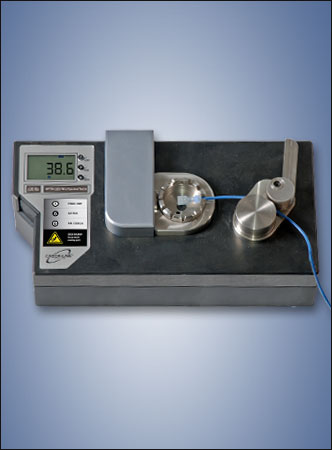

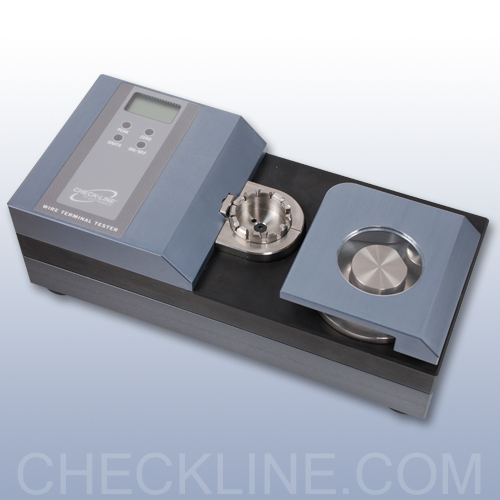

The new Check•Line WTTM Motorized Wire Terminal Pull Test is designed for tensile strength testing of wire terminals in accordance with DIN, EN, BS, IEC, UL, SAE and MIL standards

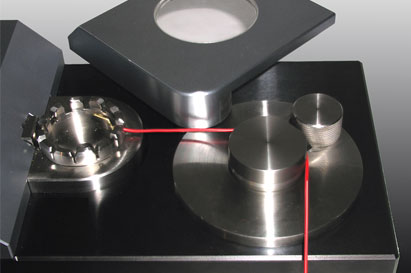

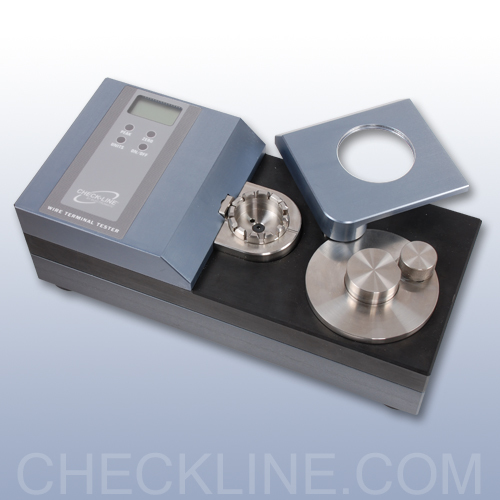

Its very simple operation allows the users to acquire reliable and reproducible test results: the user inserts the wire terminal into the receptacle adapter, and the open wire end into the combined clamp-pull device. After the protection cover has been closed, the motor starts. The wire will be fixed into position, and then constantly pulled.
Suitable for wires AWG 30 to AWG 8 (diameters from 0.010" to 0.130"). |
 Easy to use - with automatic peak value recording, very high accuracy and reproducibility of measurement results | | Selectable pull rates of 1 to 10 inches/min (25 to 250 mm/min) |
| | Supplied with FREE Data Transfer program and serial cable | | Includes NIST Calibration Certificate |
|
To operate, simply follow these steps:

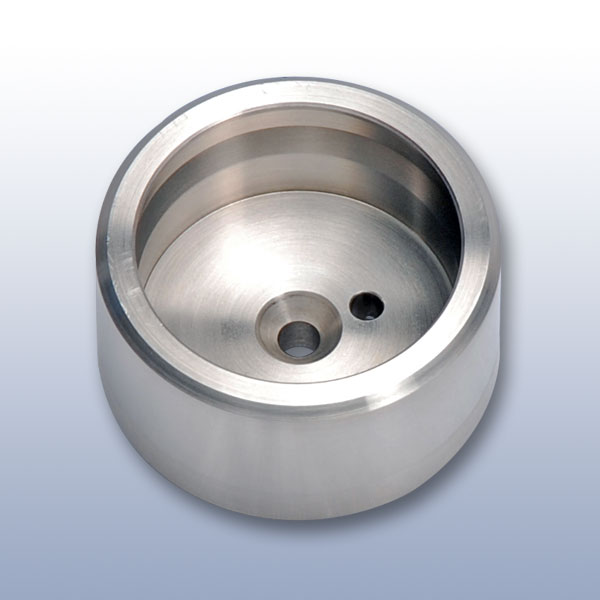

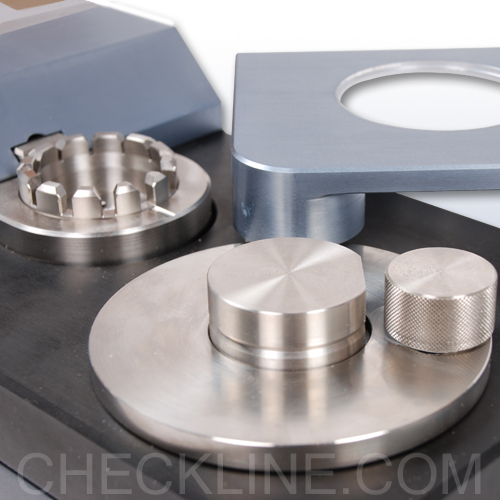

1. Select the appropriately sized slot in the Wire Terminal Fixture and rotate to the front position

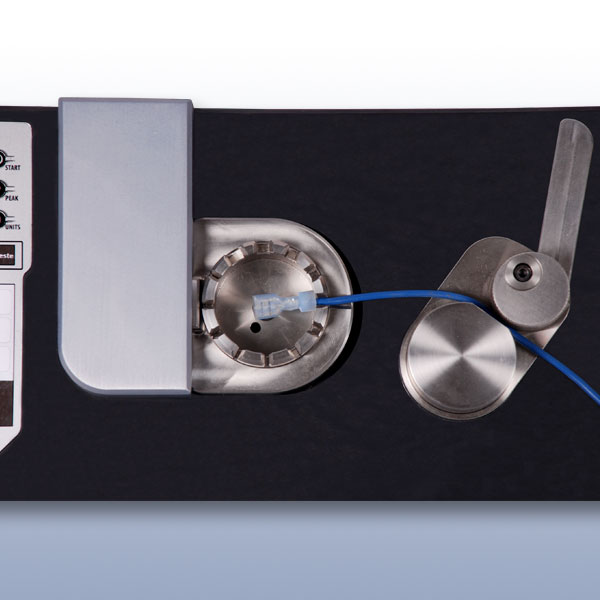

2. Insert the terminal and wire so that it is secured on the back-side of the slot

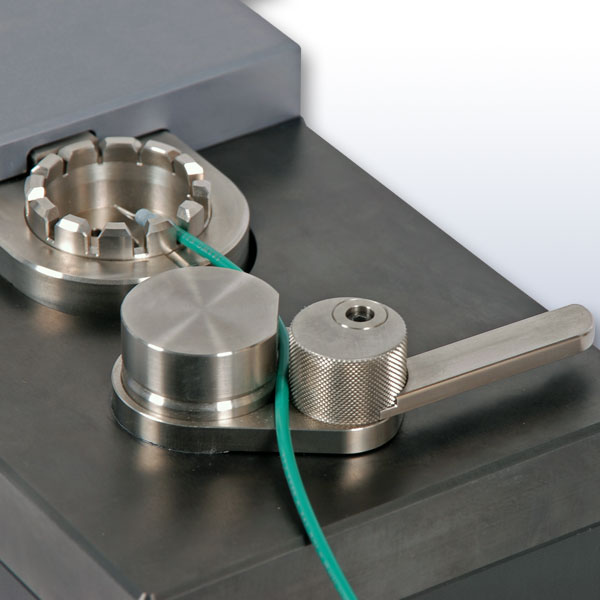

3. Route the wire so that it passes through the clamping device
4. Select Peak-Hold or Continuous Measure mode using the PEAK key
5. Press the ZERO key to perform tare function
6. Close the protective cover and the motor will start the test
7. Read current force and breaking force on the digital display
|

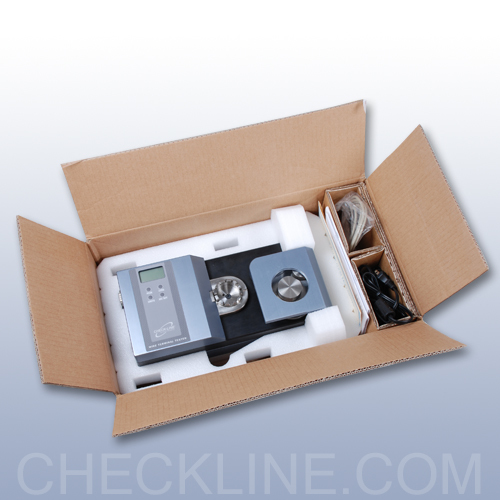

| | | | The WTTM is supplied as a complete kit including Instrument with terminal adapter and clamp-pull device, universal AC-Adapte/charger 100-240VDC, RS232-interface, connection cable for serial I/O Port (9p-D-Sub), WTT-COMM software and operation manual.
|
 |
| Measuring Range |
WTTM-110: 0-50 Kg / 0-110 lbs / 0-500N
WTTM-220: 0-100 Kg / 0-220 lbs / 0-1000N
(units selected via keypad) |
| Resolution |
WTTM-110: 0.01 Kg / 0.1 lbs / 0.1 N
WTTM-220: 0.1 Kg / 0.1 lbs / 1 N |

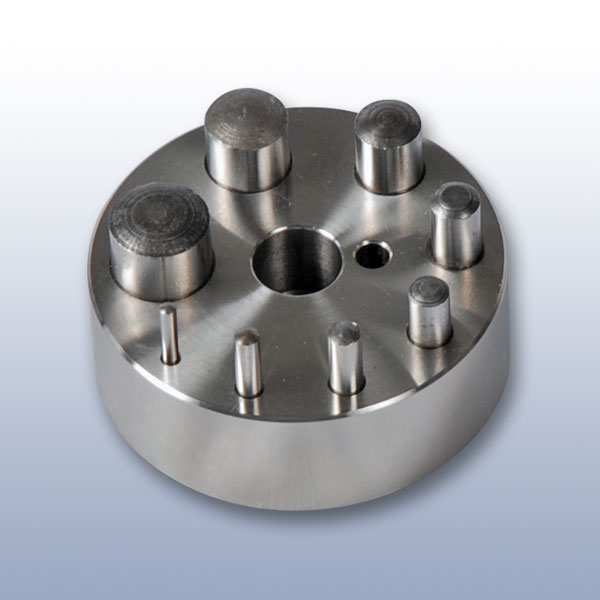

| Terminal Adapter Slot width (mm) |
0.5, 0.8, 1.0, 1.4, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 5.0, 6.0 |
| Accuracy |
±0.5% F.S. (±˝ digit) |
| Operating Modes |
Real Time:
Displays actual value in Kg, lbs or N
Peak:
Displays peak value in Kg, lbs or N |
| Wire Diameter |
SAE AS7928 II: AWG 8...30
IEC 60352-2: Cross section 0.05...10mm˛
Maximum: 0.236" (6mm) |
| Overload |
120% Full Scale (LCD indicator at 120%) |
| Display |
LCD, 4-1/2 digit, 12mm high |
| Update Rate |
Real Time Mode: 333msec
Peak Mode: 1msec |
| Memory |
Peak Value |
| Power Supply |
Universal AC Adapter 100-240VDC (50/60Hz)
Internal NiCd battery |

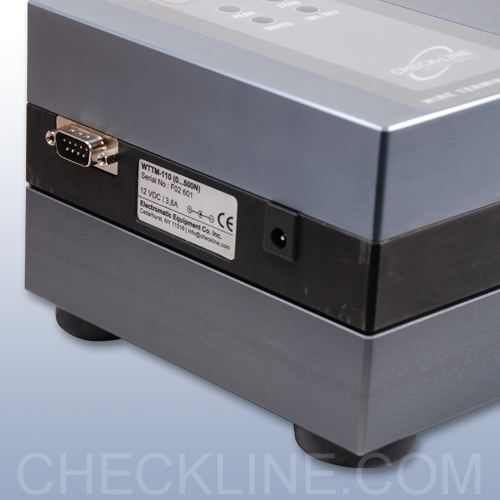

| Interface |
RS-232C - 19,200 KB / 8 / N / 1 / None (selectable baud rate) |
| Temp. Range |
Operating: 32 to 104° F (0 to 40° C)
Storage: -4 to 140° F (-20 to 60° C) |
| Weight |
42 lbs (19 Kg) (Shipping weight 44lbs) |
| Dimensions |
13.8" x 6.3" 4.3" (350 x 160 x 110mm) |
| Material |
Anodized aluminum, steel and stainless steel V2A |
|
|
