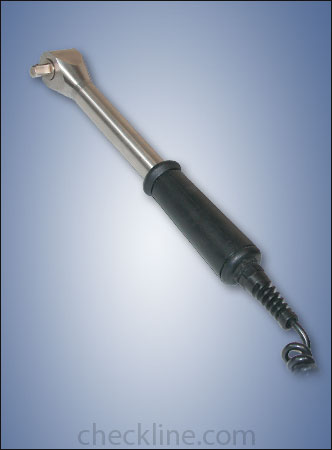

STW
Torque Wrench |
The STW has been discontinued without replacement
 Ideal for testing application and removal torque on bolts and other fasteners, with numerous uses in the automotive, aerospace, and other industries.
Requires BGI Display |
 Ideal for checking torque on bolts and other fasteners | | Member of the BGI family of interchangeable sensors | | Rubber grip |
| | Stainless steel and aluminum construction | | "Personality module" holds all calibration and configuration data |
|
| Model |
Capacity | Resolution | Drive
Size |
| STW-100 |
100 lb-in
1150 kg-mm
1150 N-cm | 0.1 lb-in
1 kg-mm
1 N-cm | 3/8" Square |
| STW-500 |
500 lb-in
5000 kg-mm
5000 N-cm | 0.5 lb-in
5 kg-mm
5 N-cm | 3/8" Square |
| STW-1000 |
1000 lb-in
11500 kg-mm
11500 N-cm | 1 lb-in
10 kg-mm
10 N-cm | 1/2" Square | | |
|
BGI
Remote Sensor Force / Torque Gauge |  |
Fully interchangeable force and torque BGI force/torque sensors with "personality" modules Unlimited number of sensors possible due to unique design RS-232, Mitutoyo and analog outputs | | Click image for more info
|
|
Accuracy
|
± 0.6% of full scale ±1 digit + BGI
|
|
Weight
|
From 1.9 lbs (0.9 kg) to 2.8 lbs (1.3 kg)
|
|
Warranty
|
3 Years
|
|
|
Features
