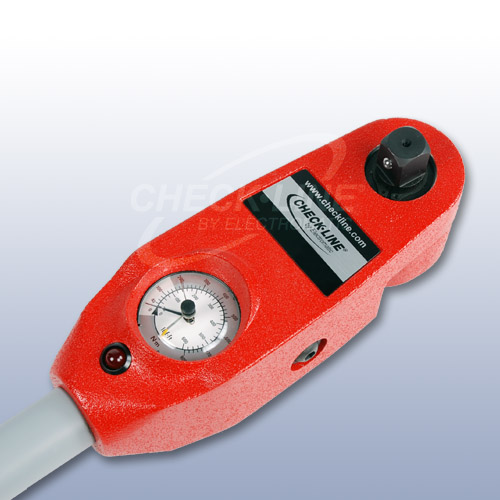

Dial wrenches are typically used as a quality control instrument to verify or monitor torque. However, some customers find them a resourceful production tool. In all cases, our dial wrenches are found to offer unmatched performance for several reasons. First, they are simple and easy to calibrate. Second, they incorporate an overload protection device to prevent over-torque and damage to parts or to the wrench. Third, our dial wrenches are non-length dependent, which means an operator can hold the wrench anywhere along the handle and the exact torque will be achieved. Lastly, the wrench offers a built-in ratchet mechanism.
Features
Dual scale in American and S.I. units. Single scale models are available upon request.
Exclusive built-in ratchet mechanism.
Fine main and memory pointers provide accurate readings.
Quality constructed for accuracy and reliability with an attractive abrasive resistant finish for longer life and ease in identification.

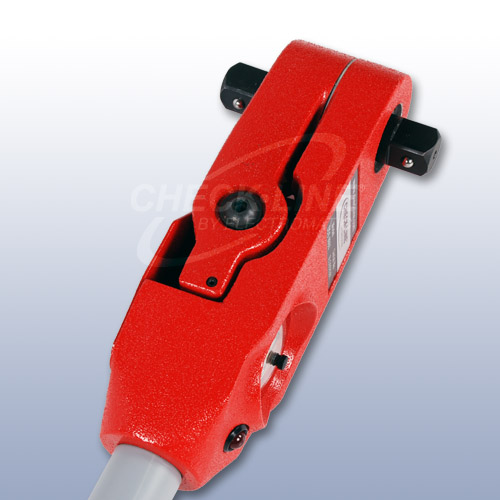

Standard double-ended spindle ratchet mechanism allows for left handed torque applications.
Mechanical stop provides overload protection to 125% of full scale.
Recessed dial minimizes dial breakage.
Dial wrench models are available in a wide variety of torque ranges, from 7 lbf.in - 1500 lbf.ft. Select a dial wrench that fits your toque range requirement.
Photo Gallery - click any photo to enlarge
Force Ranges
Model
Capacity
Resolution
Square Drive
Light Signal
Length / Width
ADS4
7 - 35 lbf.in 0.8 - 4 N.m
1 lbf.in 0.1 N.m
1/4"
*
9.6in / 1.15lbs
ADS8
14 - 70 lbf.in 1.6 - 8 N.m
1 lbf.in 0.25 N.m
1/4"
*
9.6in / 1.15lbs
ADS12D
24 - 120 lbf.in 2.4 - 12 N.m
2 lbf.in 0.5 N.m
1/4"
*
9.6in / 1.15lbs
ADS12A
24 - 120 lbf.in 2.4 - 12 N.m
2 lbf.in 0.5 N.m
3/8"
*
9.6in / 1.15lbs
ADS25
48 - 240 lbf.in 5 - 25 N.m
10 lbf.in 1 N.m
3/8"
*
9.6in / 1.15lbs
ADS25F
4 - 20 lbf.ft 5 - 25 N.m
0.5 lbf.in 1 N.m
3/8"
*
9.6in / 1.15lbs
ADS40
72 - 360 lbf.in 8 - 40 N.m
10 lbf.in 1 N.m
3/8"
*
9.6in / 1.15lbs
ADS40F
6 - 30 lbf.ft 8 - 40 N.m
1 lbf.in 1 N.m
3/8"
*
9.6in / 1.15lbs
BDS80A
12 - 60 lbf.ft 16 - 80 N.m
1 lbf.in 2 N.m
3/8"
No
17.12in / 3lbs
BDS80AS
12 - 60 lbf.ft 16 - 80 N.m
1 lbf.in 2 N.m
3/8"
Yes
17.31in / 3.24lbs
BDS80E
12 - 60 lbf.ft 16 - 80 N.m
1 lbf.in 2 N.m
1/2"
No
17.12in / 3lbs
BDS80ES
12 - 60 lbf.ft 16 - 80 N.m
1 lbf.in 2 N.m
1/2"
Yes
17.31in / 3.28lbs
BDS160
24 - 120 lbf.ft 32 - 160 N.m
2 lbf.in 2.5 N.m
1/2"
No
20.27in / 3.1lbs
BDS160S
24 - 120 lbf.ft 32 - 160 N.m
2 lbf.in 2.5 N.m
1/2"
Yes
20.47in / 3.39lbs
BDS200
30 - 160 lbf.ft 40 - 200 N.m
5 lbf.in 5 N.m
1/2"
No
20.27in / 3.1lbs
BDS200S
30 - 160 lbf.ft 40 - 200 N.m
5 lbf.in 5 N.m
1/2"
Yes
20.47in / 3.39lbs
CDS400S
60 - 300 lbf.ft 80 - 400 N.m
10 lbf.in 10 N.m
3/4"
Yes
27.95in / 6.94lbs
DDS800S
120 - 600 lbf.ft 160 - 800 N.m
20 lbf.in 20 N.m
3/4"
Yes
39.37in / 10.7lbs
EDS1400
200 - 1000 lbf.ft 280 - 1400 N.m
25 lbf.in 25 N.m
1"
Yes
80.3in / 36.72lbs
EDS2000
300 - 1500 lbf.ft 400 - 2000 N.m
50 lbf.in 50 N.m
1"
Yes
80.3in / 36.72lbs
Note:
* SPECIAL ORDER
All Light Signal Wrenches use standard size batteries
All ADS - EDS wrenches available in single scale models
ADS and BDS models are supplied with a protective plastic case
EDS Models available with single or double-end, but not with a ratchet end
For Single-End Spindle select "SE" option in Buy Now
