TSTM - Vertical Stand

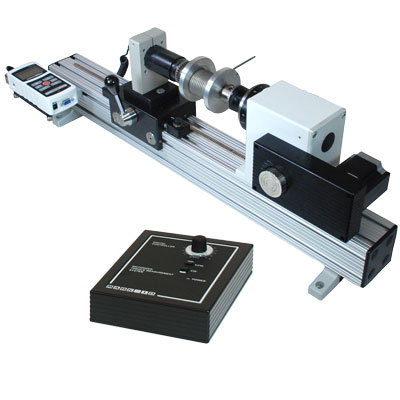

TSTMH - Horizontal Stand

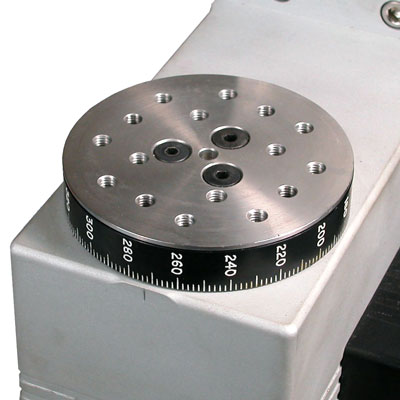

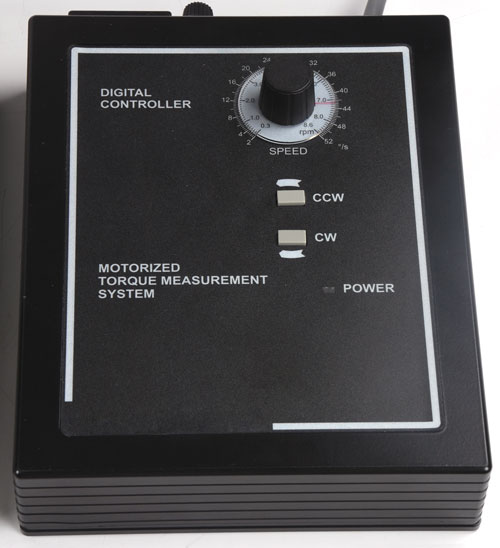

The TSTM Motorized Torque Measurement Test Stand is ideal for a wide variety of torque testing applications up to 100 lbin, including closure torque testing, fastener torque testing, and more. Motorized clockwise and counterclockwise rotation allows for highly precise and repeatable tests. Versatile modular design allows the stand to be configured for a variety of torque sensors and gripping fixtures while a lever-operated slider with travel stops makes engaging and disengaging samples quick and efficient. The stand includes a torque loading plate with tapped holes for grip and custom fixture mounting and a resetable angle indicator.

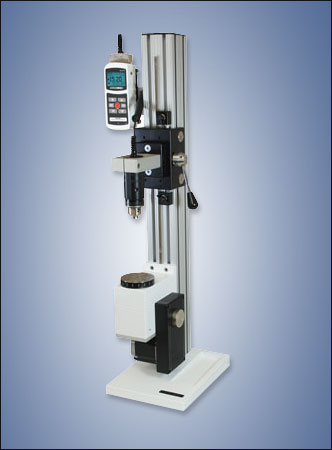

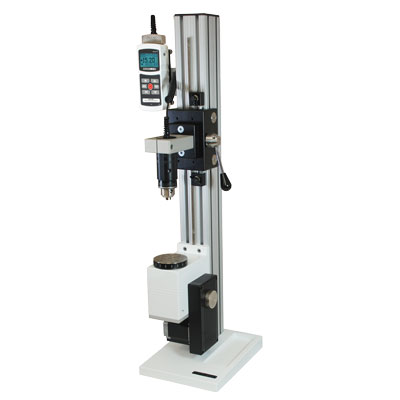

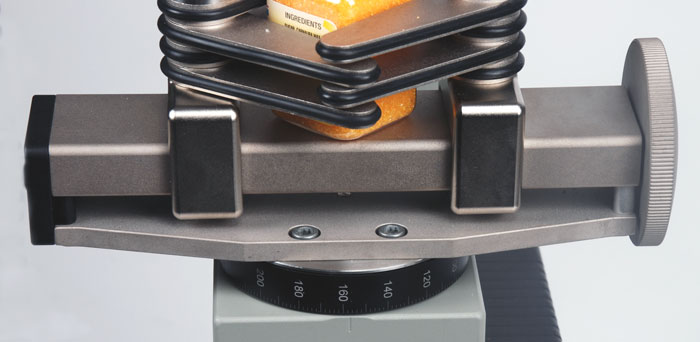

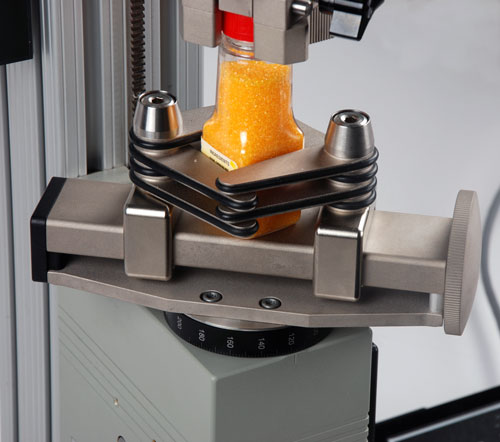

Images show TSTM with Optional Equipment.
The TSTM is a motorized test stand only. In order to measure torque you will need to add a torque sensor, display and appropriate test fixtures.
For cap torque testing applications we offer a complete system including torque sensor, display and appropriate test fixtures; refer to this link .....CAP-TSTM.
- Maximum load: 100 lbin (11.3 Nm)
- Speed range: 0.3-8.6 RPM (4-52°/s)
- Speed accuracy: ±5% of setting
- No speed variation with load

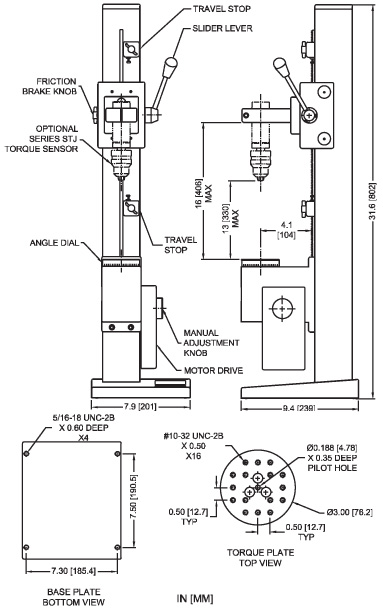

| Maximum Load | 100 lbin |
| Speed Range | 0.3-8.6 RPM (4-52°/s) |
| Speed Accuracy | ±5% |
| Maximum Angular Travel | No limit |
| Throat | 4.10" (104 mm) |
| Manual Adjustment | 12º/knob rev |
| Maximum Silder Travel | 15.5" (394 mm) |
| Slider Travel Rate | 1.047" (26.6 mm) / level rev |
Column extension $125.00 base + $15.00 per inch
The TSTM / TSTMH now includes the AC1004 adjustable gauge mounting plate.
The TSTM / TSTMH is supplied with a wrench set.
| Item | Description | Price | ||
|---|---|---|---|---|
Motorized Torque Test Stand - REPLACED BY TSTM-DC | $ | |||
Motorized Torque Test Stand - REPLACED BY TSTM-DC | $ | |||
| Accessories | ||||

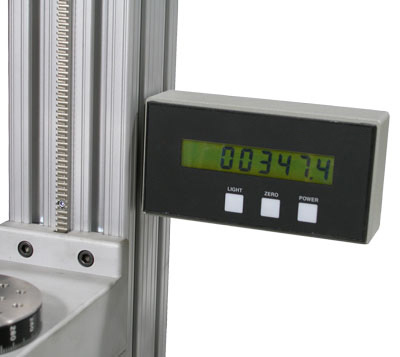

TST001 | Digital angle indicator for TST-Series stands | $1,135.00 | ||
AC1113 | Cable, set point / overload protection, gauge to test stand, old PN 09-1180 | $200.00 | ||
Set Point Cable | $145.00 | |||
TSF002 | Horizontal/wall mounting kit for Series TSF and TST stands | $245.00 | ||
