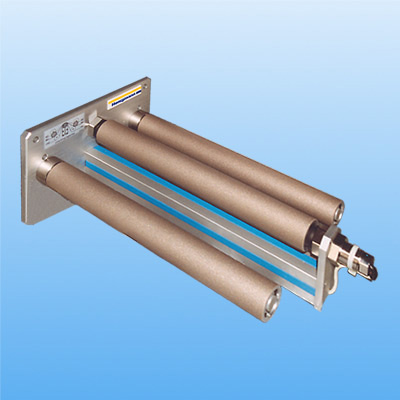

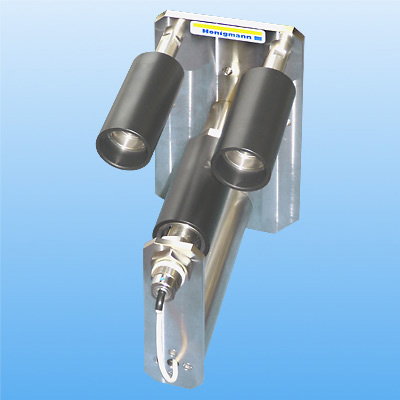

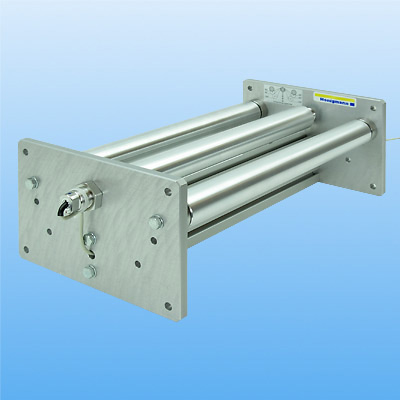

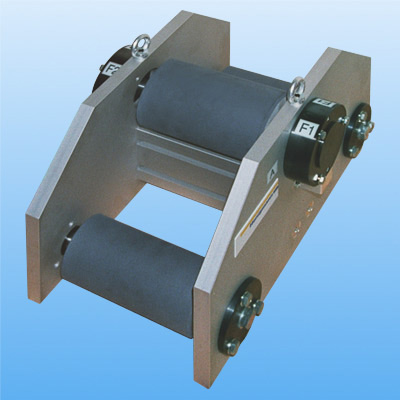

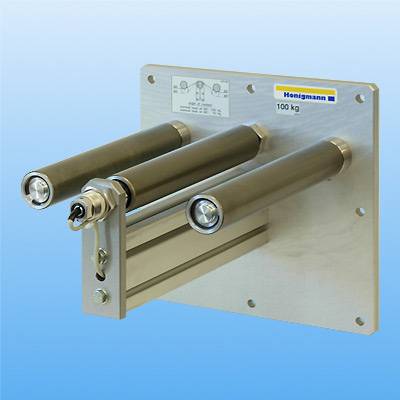

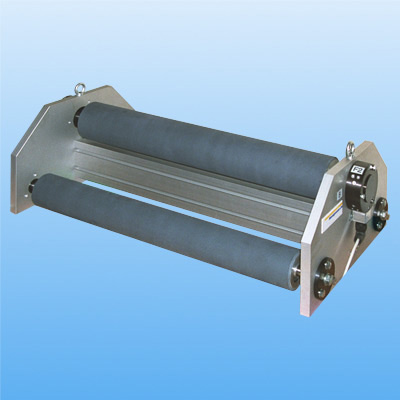

WTM-3R
Web Tension Module 3 Roller Design |
|
 Customer specified roll material | | Labyrinth seals / V-sealing rings | | Customer specified roll dimensions |
| | Easy-running self-aligning bearings in non-locating and locating bearing position | | Pre-assembled, ready to be installed as measuring module |
|
| Model |
Range | Range g/Kg (lbs) |
| WTM-3R-200 |
0-2 N | 0-200 g (0.00-0.44 lbs) |
| WTM-3R-400 |
0-4 N | 0-400 g (0.00-0.88 lbs) |
| WTM-3R-1K |
0-10 N | 0-1 Kg (0.00-2.20 lbs) |
| WTM-3R-2K |
0-20 N | 0-2 Kg (0.00-4.40 lbs) |
| WTM-3R-4K |
0-40 N | 0-4 Kg (0.00-8.80lbs) |
| WTM-3R-10K |
0-100 N | 0-10 Kg (0.00-22.0 lbs) |
| WTM-3R-20K |
0-200 N | 0-20 Kg (0.00-44.0 lbs) |
| WTM-3R-40K |
0-400 N | 0-40 Kg (0.00-88.0 lbs) |
| WTM-3R-100K |
0-1000 N | 0-100 Kg (0.00-220.0 lbs) |
| WTM-3R-200K |
0-2000 N | 0-200 Kg (0.00-440.0 lbs) | | |
|
