As of October 2012 the DT-209X is no longer available, it has been replaced by the DT-2100

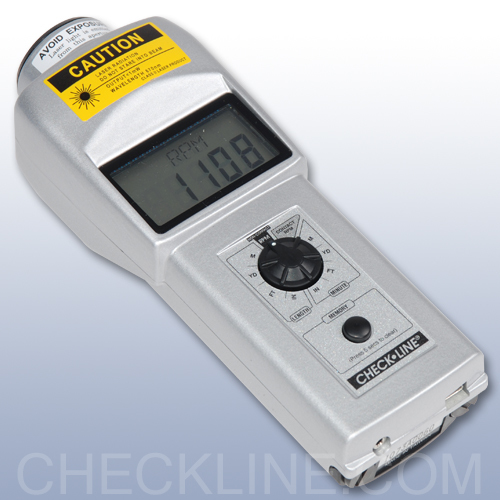

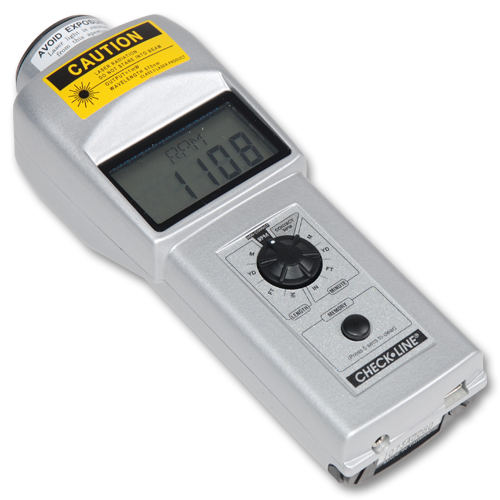

The DT-209X Combination laser Tachometer with Memory & Data-Output offers outstanding features and value in a compact rugged package.
Enhanced download features and online controls, showing trending and real time data via USB communication; you can easily access your data by the free software included in each DT-209X package. USB and Analog output included.
Software supplied with DT-209X requires Windows XP (not compatible with Windows 7).
The DT-209X Combination laser Tachometer with Memory & Data-Output offers outstanding features and value in a compact rugged package.
Enhanced download features and online controls, showing trending and real time data via USB communication; you can easily access your data by the free software included in each DT-209X package. USB and Analog output included.
Software supplied with DT-209X requires Windows XP (not compatible with Windows 7).
- High-precision laser measures from distances up to 14 feet
- Includes 6" circumference surface speed wheel

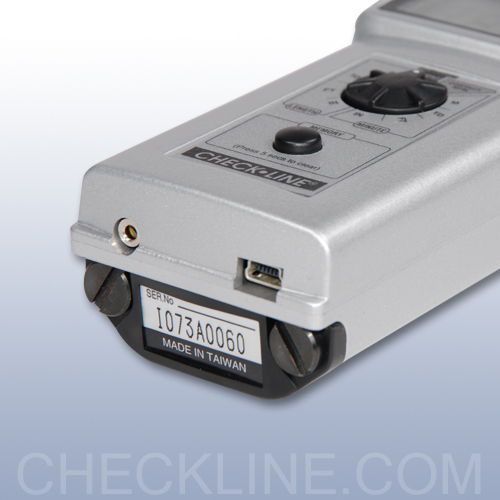

- Provides both USB and Analog Output (0 - 1V DC)

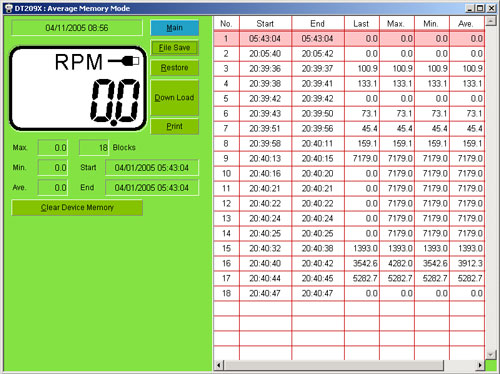

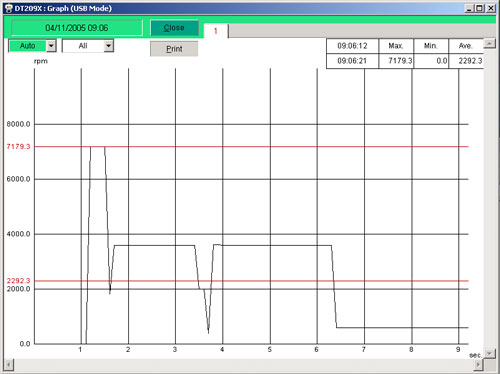

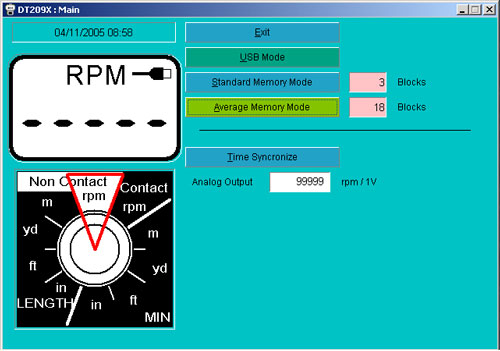

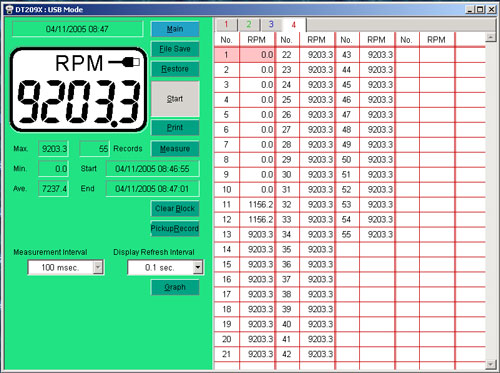

- PC Software is included FREE displays RPM data in numerical and graphic formats (refer to photo gallery above)
- Built-in memory for last, maximum, minimum and 10 separate readings
- FREE NIST-traceable calibration certificate
- Includes USB cable and software

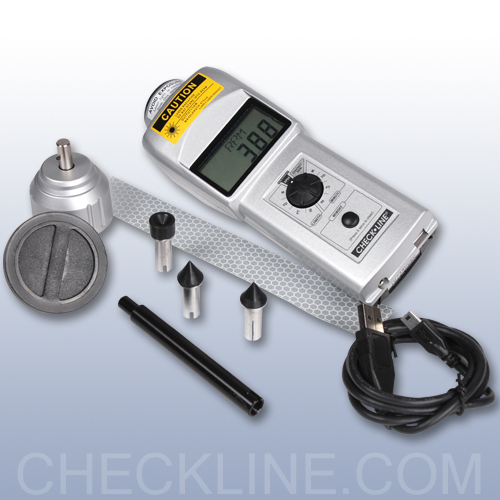

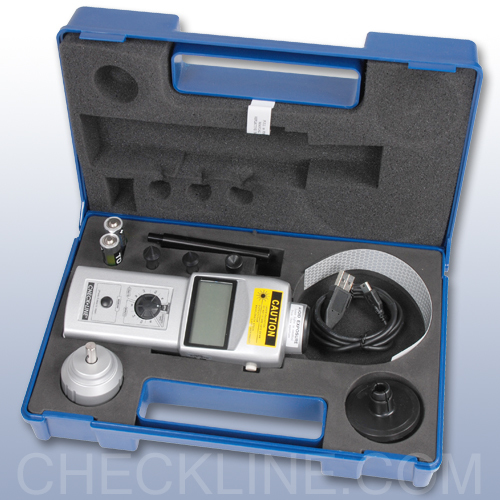

The DT-209X is supplied as a complete kit including the tachometer, contact adapter, reflective tape, 2 cone adapters, funnel adapter, 3 1/2" Extension shaft, 6" cir. measuring wheel, NIST certificate, USB cable and Application software in a rugged carrying case
| Display Range | 6 to 99,999 rpm |
| Accuracy | 6 to 8,299 rpm: ±1 rpm 8,300 to 24,999 rpm: ±2 rpm 25,000 to 99,999 rpm: ±0.006% rpm |
| Display | LCD - 5 digit 0.47" (12mm) high LCD |

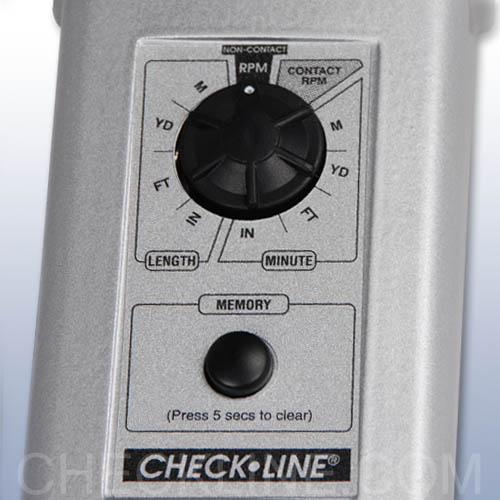

| Measuring Units | per Minute: Revolutions, Meters, Yards, Feet, Inches Total Length: Meters, Yards, Feet, Inches |
| Measuring Distance | 14 feet (5.2 m) maximum |
| Measuring Modes | USB mode; PC online measuring / standard (STD) mode; Standard measuring |
| Detection | Laser Diode, Class II |
| Memory | STD mode; 24 blocks, 10 points/block (Total; 240 data) AVE mode; 30 blocks |
| Over-Range Indicator | Flashing numerals |
| Update Time | 1 second (typical) |
| Analog Output | 0 - 1 V DC |
| USB Communication | USB 1.1 |
| Batteries | 2 - 1.5 V AA |
| Battery Life | 15 Hours Approximately |
| Operating Temp | 32° to 113° F (0 to 45° C) |
| Construction | Die-cast aluminum housing |
| Weight | 0.8 pounds (365 grams) |

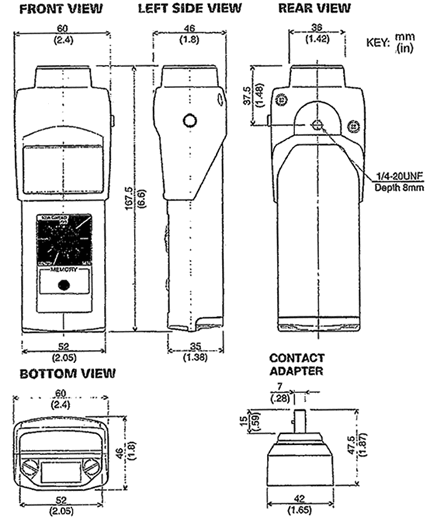

| Dimensions | 6.6" L x 2.4" W x 1.8" H (167mm x 61mm x 45.7) |
| Warranty | 1 year |
