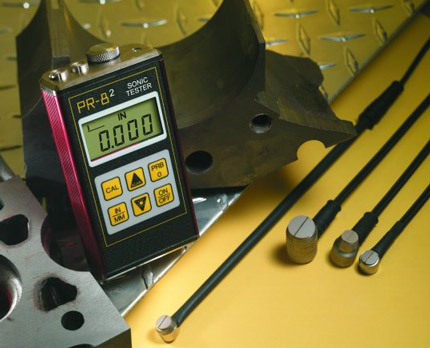

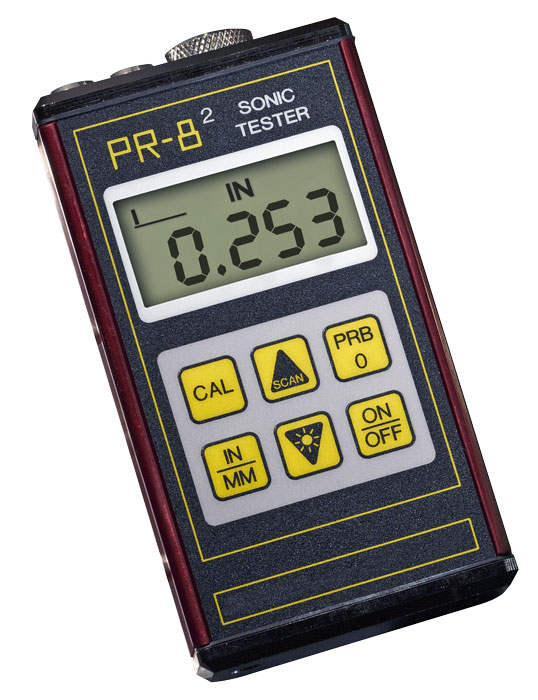

PR-82
Sonic Tester

Standard Range: 0.040 to 6.00 in / 1.00 to 150.00 mm
Range in Cast Steel & AL: 0.040 to 1.50 in / 1.00 to 38.00 mm

Applications:

  • Cylinder's & Pitting
  • Head Ports & Pipe
  • Roll Cages
  • Body Panels
  • Chasis
  • Variety of Applications

    • The PR-82 is the first affordable Sonic Tester, utilizing state-of-the-art digital technology to produce fast and accurate readings. It requires no special training to operate.

    Unlike calipers, the PR-82 will measure where there is access to only one side. This makes it valuable when measuring roll cage thickness, cylinder walls (before and after boring) and heads during porting.

    The PR-82 measures in two modes. The first mode takes a measurement at the point you place the probe. The second is the Scan mode, which is helpful when measuring cylinder walls and roll cages. Place the probe at the bottom of the cylinder and drag it to the top, the gauge will display the thinnest reading measured.

    The PR-82 is a lightweight, rugged tool that is resistant to water and oil. Other features include a backlit LCD and a bar graph to indicate signal stability. The 5 year warranty indicates how we feel about the quality of the PR-82. The PR-82 can go where you go, to do the work you do, saving you time and money, making fast, accurate measurements.





    line
    reddot Features
    line
    bluedot Four readings per second for single point measurements or 16 per second in SCAN mode.
    bluedot Resolution of 0.001 inch (0.01 mm)
    bluedot Large, back-lit LCD display retains last reading
    bluedot Simple operator controls virtually eliminate training
    bluedot Special-purpose probes are offered for a variety of applications
    bluedot Switch-selected units for inches or mm
    bluedot CE Certified
    bluedot Includes NIST Calibration Certificate

    line
    reddot Transducer and Probe Information line
    For Engine Blocks (Cylinders & Decks)
    One probe is usually good for use on both Cast Aluminum and Cast Iron Engine Blocks. The 2 inch radius allows the probe to measure the concave surface inside cylinders. The radius is gentle enough that the same probe can also be used to measure on the flat surfaces "decks" on the block. This one probe will work for over 90% of Cast Aluminum or Cast Iron Blocks.

    T-104-2120
    > 0.500"/5MHz with 2 inch radius
    > this is the standard probe supplied with PR-82

    ++ In instances where the above probe does not work, or if the block is made from a very old Aluminum Cast Aluminum, an alternate probe should be specified p/n T-104-4120 (0.500"-10MHz), also supplied with a 2" radius.

    For Heads (Ports)
    Probe selection depends upon type of material; cast iron or cast aluminum. This probe has a 0.55" radius and is supplied with either a 1 inch wand or 9 inch wand, depending upon user preference.

    Cast Iron
    > 0.250"/5MHz with 0.55" Radius
    with 1 inch wand T-162-2110
    with 9 inch wand T-132-2110

    Cast Aluminum
    > 0.250/10MHz with 0.55" Radius
    with 1 inch wand T-162-4110
    with 9 inch wand T-132-4110

    For Chassis Tubing
    This would be used by chassis builders as well as sanctioning bodies (i.e. NHRA, ARCA, etc.). One probe is normally suitable for any application, assuming they do not want "thru-paint" capability.

    T-101-4000
    > 3/16"-10MHz flat bottom (no radius)

    For "thru-paint" capability, when measuring chassis tubing for use with the PR8V

    T-102-2700
    >0.250/5MHz Hi-Damp for use in MMX Mode


    line
    reddot Specifications
    line
    Range Standard Range: 0.040 to 6.00 in / 1.00 to 150.00 mm
    Range Cast Steel & AL: 0.040 to 1.50 in / 1.00 to 38.00 mm
    Resolution: .001 inches (0.01mm)
    Velocity Range: .0492 to .3936 in./ms
    1250 to 9999 meters/sec
    Units: English & Metric (inch or mm)
    Transducer Types: Dual Element (1 to 10 MHz).
    Power Source: Two 1.5V alkaline or 1.2V NiCad AA cells.
    Battery Life: Typically operates for 200 hours on alkaline and 130 hours on NiCad.
    Auto Power off: if idle 5 min
    Display: Multi-function 4.5 digit liquid crystal display with 0.500 inch numerals, backlit for use in poor light conditions
    Keyboard: Sealed membrane that is resistant to both water and petroleum products.
    Case: Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed).
    Operating Temperature: -20 to 120F (-20 to 50C)
    Weigth, net: 10 ounces
    Dimensions: 2.5 W x 4.5 H x 1.24 D inches
    Warranty: 5 year limited
    Certification: CE Approved, Factory calibration traceable to national standards

    line
    reddot Buy Now
    line

      Item Price Description Stock
    Check the items you would like to purchase then click "Buy Now"
    PR-82 $1,095.00 Field Calibration of all materials, High SpeedIn Stock
    Accessories
    T-121-2100 $255.00 5.0 Mhz 3/16" Low Profile TransducerIn Stock
    T-102-2000 $255.00 5.0 Mhz 1/4" Chassis tubing TransducerIn Stock
    T-102-2700 $295.00 5.0 Mhz 1/4" Thru-paint Chassis tubing TransducerIn Stock
    T-162-2110 $265.00 5.0 Mhz 1/4" Low Profile 1" wand for cast iron head ports Transducer .6" RadiusIn Stock
    T-132-2110 $265.00 5.0 Mhz 1/4" Low Profile 9" wand for cast iron head ports Transducer .6" RadiusIn Stock
    T-104-2120 $265.00 5.0 Mhz 1/2" Cylinder Probe - Iron Transducer 2" RadiusIn Stock
    T-101-4000 $275.00 10.0 Mhz 3/16" NHRA chassis tubing TransducerIn Stock
    T-162-4110 $275.00 10.0 MHz 1/4" Low Profile 1" wand for cast alum. head ports Transducer .6" RadiusIn Stock
    T-132-4110 $275.00 10.0 MHz 1/4" Low Profile 9" wand for cast alum. head ports Transducer .6" RadiusIn Stock
    T-104-4120 $275.00 10.0 Mhz Cylinder Probe - Alum Transducer 2" RadiusIn Stock
    In Stock In stock 1 Week Lead Time 1 Week Lead Time Special Order Item Special Order Item
