DT-209X
Contact & Non-Contact Tachometer with USB Memory & Data-Output |
As of October 2012 the DT-209X is no longer available. There is no replacement / alternative model currently available.

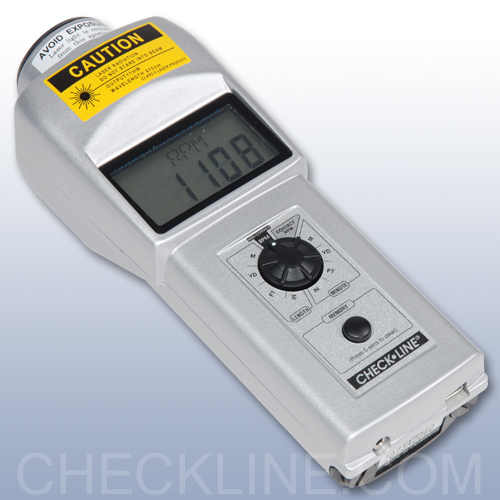

The DT-209X Combination laser Tachometer with Memory & Data-Output offers outstanding features and value in a compact rugged package.

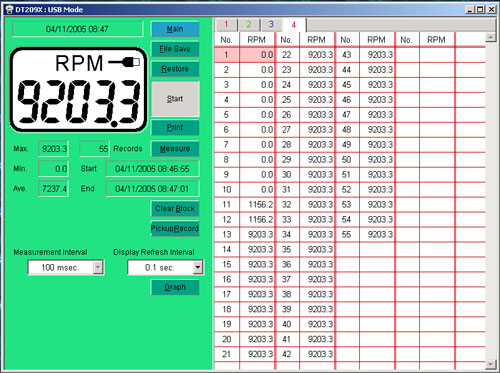

Enhanced download features and online controls, showing trending and real time data via USB communication; you can easily access your data by the free software included in each DT-209X package. USB and Analog output included.
Software supplied with DT-209X requires Windows XP (not compatible with Windows 7). |
 High-precision laser measures from distances up to 14 feet | | Includes Traceable calibration Certificate | | Built-in memory for last, maximum, minimum and 10 separate readings | | Includes USB cable and software |

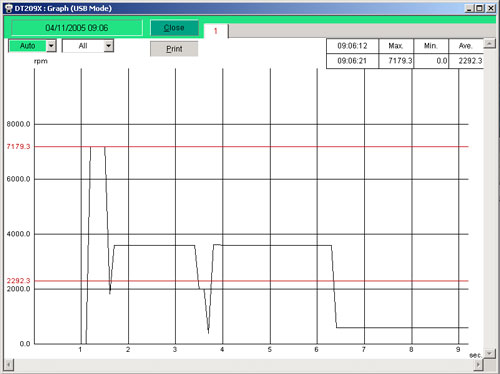

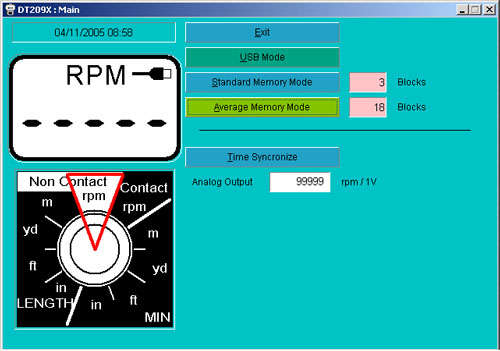

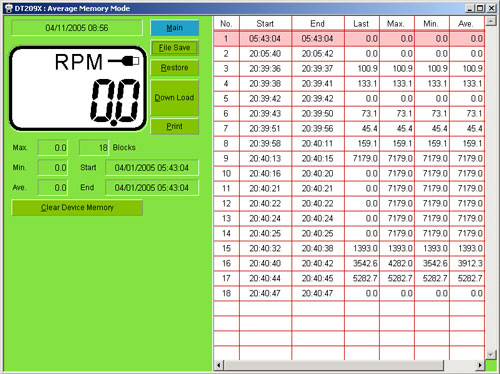

| | Includes 6" circumference surface speed wheel | | PC Software is included FREE displays RPM data in numerical and graphic formats

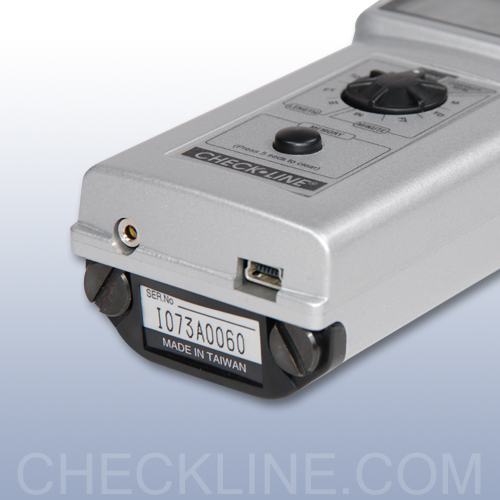

(refer to photo gallery below) | | Provides both USB and Analog Output (0 - 1V DC) |
|

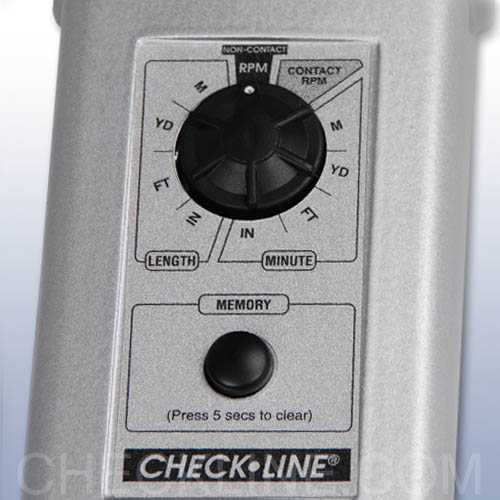

DT-209X Mode Selector Switch

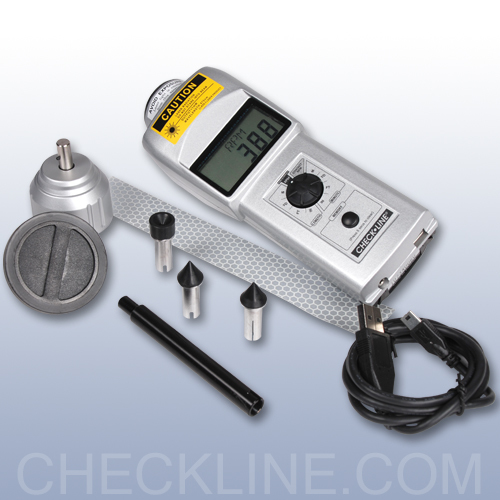

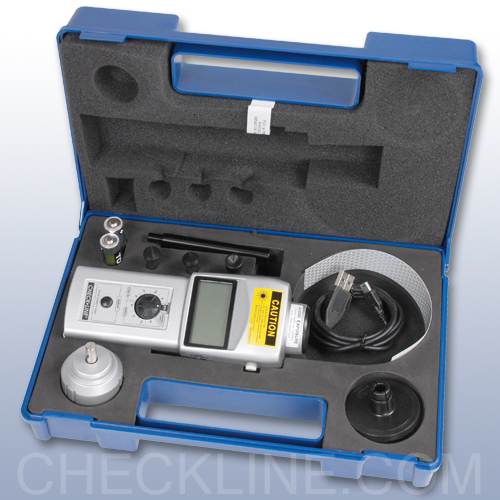

| | | | The DT-209X is supplied as a complete kit including the tachometer, contact adapter, reflective tape, 2 cone adapters, funnel adapter, 3 1/2” Extension shaft, 6” cir. measuring wheel, Traceable certificate, USB cable and Application software in a rugged carrying case |
 |
|
DT-TRI-HD
Tripod for Tachometers and Stroboscopes |  |
Expands from 10 1/2" to 40" | | Click image for more info | | |
|
LMA-3
12 in Circumference Knurled Aluminum Measuring Wheel |  |
| | Click image for more info
|
|
Measuring Range
|
Non-Contact - 6 to 99,999 rpm
Contact - 0.8 to 25,000 rpm
|
|
Accuracy
|
6 to 8,299 rpm: ±1 rpm
8,300 to 24,999 rpm: ±2 rpm
25,000 to 99,999 rpm: ±0.006% rpm
|
|
Display
|
LCD - 5 digit 0.47" (12mm) high LCD
|
|
Measuring Units
|
|
|
per Minute
|
Revolutions, Meters, Yards, Feet, Inches
|
|
Total Length
|
Meters, Yards, Feet, Inches
|
|
Measuring Distance
|
14 feet (5.2 m) maximum
|
|
Measuring Modes
|
USB mode; PC online measuring / standard (STD) mode; Standard measuring /
|
|
Detection
|
Laser Diode, Class II
|
|
Memory
|
STD mode; 24 blocks, 10 points/block (Total; 240 data) AVE mode; 30 blocks
|
|
Over-Range Indicator
|
Flashing numerals
|
|
Update Time
|
1 second (typical)
|
|
Analog Output
|
0 - 1 V DC
|
|
USB Communication
|
USB 1.1
|
|
Batteries
|
2 - 1.5 V AA
|
|
Battery Life
|
15 Hours Approximately
|
|
Operating Temp
|
32° to 113° F (0 to 45° C)
|
|
Construction
|
Die-cast aluminum housing
|
|
Weight
|
0.8 pounds (365 grams)
|
|
Dimensions
|
6.6" L x 2.4" W x 1.8" H (167mm x 61mm x 45.7)
|
|
Warranty
|
1 year
|
|
Accessories Included
|
Reflective tape, cone adapter, surface speed wheel (6" cir.), 200L contact adapter and carrying case
|
|
|
|
Features
Tachometer Accessories
