SBK-494
Calibration Fixture for DTX2 Cap Torque Tester |

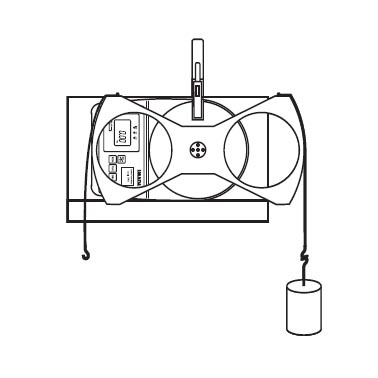

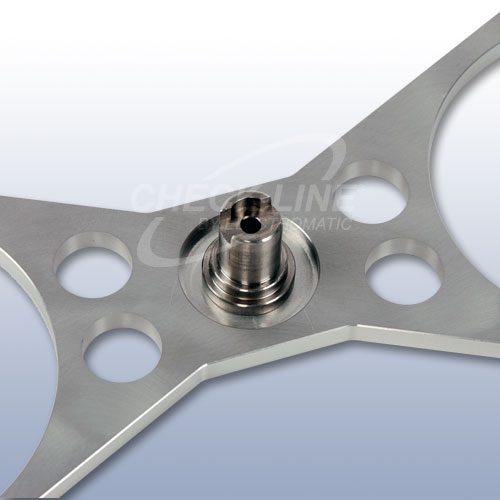

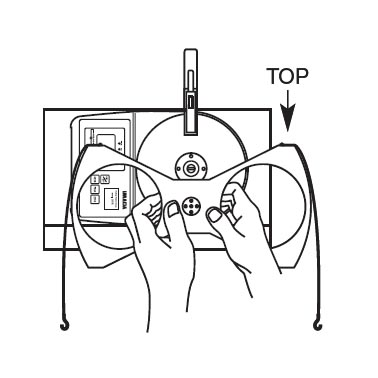

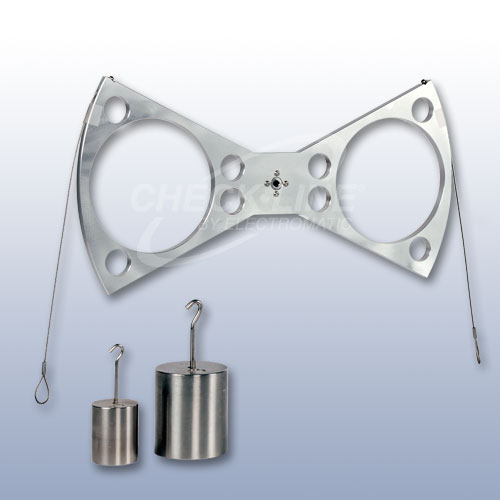

The SBK-494 is a precision calibration fixture for the DTX2 Cap Torque Tester, allowing you to test and recalibrate in-house. Requires a precision weight set, refer to table below for required weights. |
|
DTX2
Cap Torque Tester |  |
 Real time and peak mode (selectable)
Serial Output for connection to Printer or PC | | Click image for more info
|
| Model |
DTX/DTX2-15 |
DTX/DTX2-40 |
DTX/DTX2-85 |
| Capacity (kgf-cm) |
20.00 |
50.00 |
100.0 |
| Allowable Range (kgf-cm) |
19.90~20.10 |
49.75~50.25 |
99.5~100.5 |
| Allowable Tolerance (kgf-cm) |
0.10 |
0.25 |
0.5 |
| *Weight (kg) |
1 |
2.5 |
5 |
| *Weight is appropriate for 20 cm radius calibration arm |
|
|
|
