M36
Analog Photo Tachometer |
The easy-to-use Pioneer M36 tachometer allows accurate measurement of RPM in almost any environment. Simply aim the highly-visible light beam at a reflective mark placed on a rotating device, push the button and the RPM reading is immediately displayed. No contact with the shaft or wheel is necessary. |
 Longest measurement range of any hand-held photo tachometer | | Includes NIST-traceable certificate | | Easy-to-use one-button operation |
| | Convenient analog readout; 0-12,000 RPM range | | Durable—the reliable industrial workhorse for over 20 years |
|
| Display |
Analog meter |
| Display Range |
0 - 2,400 RPM and 0 - 12,000 RPM |
| Measurement Range |
6 to 30 inches |
| Resolution |
+/- 2 RPM over the entire range |
| Photocell |
Hermetically sealed cadmium selenide |
| Power Switch |
Press-to-operate mechanical switch |
| Power Requirements |
Two 1.5 V "AA" batteries and one 9 V alkaline battery (included) |

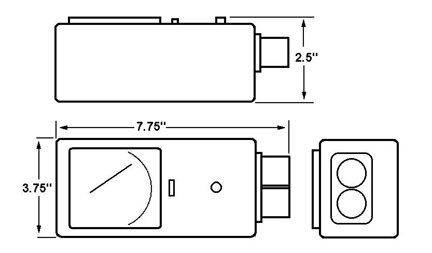

| Dimensions |
3.75" x 7.75" x 2.5" |
| Construction |
High impact plastic |
| Weight |
Approximately 1.75 pounds, (including internal batteries) |
| Operating/Storage Environment |
32 – 114°F/ 0 – 125°F |
|
|
