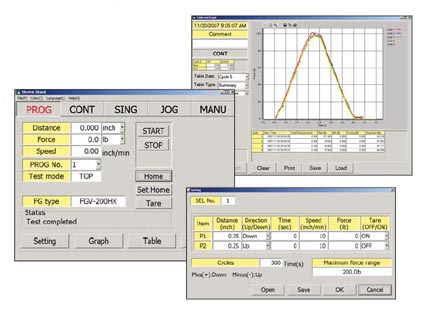

The E- Force test stand features bi-directional USB which speeds data communications with almost any PC or lap top computer. The E-Force firmware displays prompts and menus that guide the user through all programs, setups and final tests. Windows® like software permits users to perform standard tests, plus Pull or Push to break, Pull or Push to specified load and cycling. E-Force software provides force vs displacement or time to be displayed and the results collected in tabular and graphical format. This information can then be exported to Microsoft® Office products like Excel®.
The E-Force features precision servo gear head and ball screw drive for confident and complete control of the test stand.
All programming of return speed, test speed, distance/deflection set points, cycles, force set points are performed using a PC/Lap top or through the front panel control keypad. (Push and Pull to Break and Yield Tests controlled through a PC or Lap Top only.)
The large and easy to read back lit digital display indicates all programmed set points, and indicates test, status of the program set up, force loads and overload alarm warnings. The E-Force provides selectable units of measure in force units. (Lbs., Oz, Kg, N and distance Inches or mm)

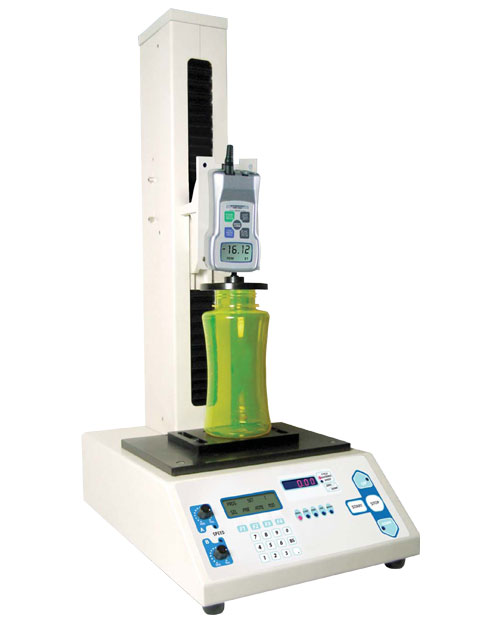

The E-Force can be equipped with a variety of accessories including grips and compression fixtures.
The large sample area and 3.38" inch (86mm) throat depth provides for unique and large parts to be tested. Metric English threaded – adjustable base plate provided. A precise and consistent 0.06 to 400 mm/min (0.02 to 15.7 in/min) cross head speed provides for ultra slow creep tests and constant load testing.
The E-Force features precision servo gear head and ball screw drive for confident and complete control of the test stand.
All programming of return speed, test speed, distance/deflection set points, cycles, force set points are performed using a PC/Lap top or through the front panel control keypad. (Push and Pull to Break and Yield Tests controlled through a PC or Lap Top only.)
The large and easy to read back lit digital display indicates all programmed set points, and indicates test, status of the program set up, force loads and overload alarm warnings. The E-Force provides selectable units of measure in force units. (Lbs., Oz, Kg, N and distance Inches or mm)
The E-Force can be equipped with a variety of accessories including grips and compression fixtures.
The large sample area and 3.38" inch (86mm) throat depth provides for unique and large parts to be tested. Metric English threaded – adjustable base plate provided. A precise and consistent 0.06 to 400 mm/min (0.02 to 15.7 in/min) cross head speed provides for ultra slow creep tests and constant load testing.
- PC Control with Software
- Hands off operation, reduces errors, speeds tests
- Auto reverse for test modes
- High Speed return to "home" saves time in multi parts testing
- Single model with wide speed range
- Meets many testing needs
- Easy force gauge (load range) changing
- Provides for multiple test ranges (0.5 to 200 lbs. (200 gram, 2 N - 100Kg, 1000N)
- Intuitive and easy to use front panel controls
- Reduces operator training time
1. Manual - push button up and down control
2. Jog - press and release for positioning of parts and force gauge
3. Single - allows one cycle operation (up/down)
4. Continuous - ideal for fatigue or repetitive testing
5. Programmable:
- PC controlled and Test Stand controlled
- Save and recall test parameters
- Top Load TEsting
- Tensile Break
- Compression Break
 |
 |
| Syringe Test | Pill Crush |
 |
 |
| Surgical Tubing Catheter Test | Automotive Hood Piston Test |
 |
 |
| Electrical Wire & Terminal Crimp Test | Spring Test |
 |
|
| Commercial QA/QC Test |
| Capacity | 200 lbs (100 kgf) |
| Reduction Ratio | 1:20 |
| Precision Ball Screw Pitch | 4mm / 1 Rotation |
| Stroke | 400 mm (15.7 inch) |
| Travel Speed | 0.6 mm/min (0.02 inch/min) - 400 mm/min (15.7 inch/min) |
| Drive System | Servo Motor (Trapezoidal thread (pitch 4mm / 1 rotation) |
| Speed Setting | Selectable Speed Knobs (Speed A and Speed B) |
| Display | 5 digit LED |
| Cycle (max) | 1 - 9,999 times |
| Analog Signal Output | 5 mV/ mm max +/- 2 V (400 mm) |
| Operating Modes | MANUAL - Operates to selectable force limits JOG - Operates while direction key is pressed SINGLE - Operates one cycle between upper and lower force limits CONTINUOUS - Cycles test between upper and lower force limits. |
| Program | Specific Program Tests (each can store 5 programs on each type) TOP: Top Load test with threshold option STD: Standard test with preload option BREAK: Break point test with force drop detection |
| Communication Feature | USB 1.1 communication from Test stand to PC |
| Communication Software | Windows based program, virtual front panel compatible with Windows XP/2000 |
| Alarm | Overload protection for test stand motor (stops motor when overload condition occurs). |
| Work Space | 200 mm (7.87 inch) X 280 mm (11.02 inch) |
| Operating Temperature | 0 - 45 degrees Celsius (Non-condensing) |
| Power Supply | 120 V AC/ 60 hz |
| Weight | 23 Kg (50 lbs) |
| Warranty | 2 Years |
