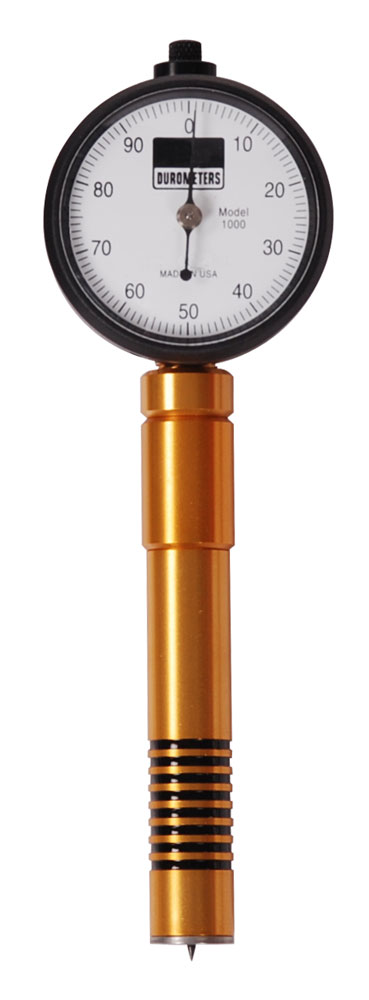

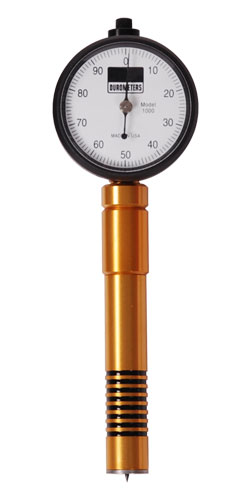

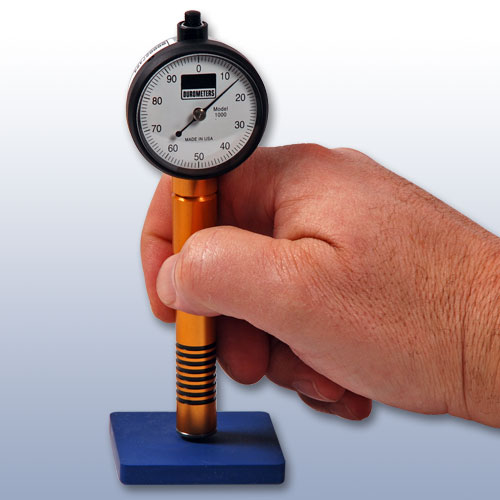

The RX-1000 Mini-Dial Durometer is both compact and easy to use. Its small dial face and included leather clip-on carrying case make it easy for an inspector to carry the gauge- for work around the shop, or out in the field. The RX-1000 durometer holds the maximum reading until reset by pressing the button at the top of the gauge. The max-hold feature and small dial size make the RX-1000 a good choice for hard to reach places, or for out of sight testing.

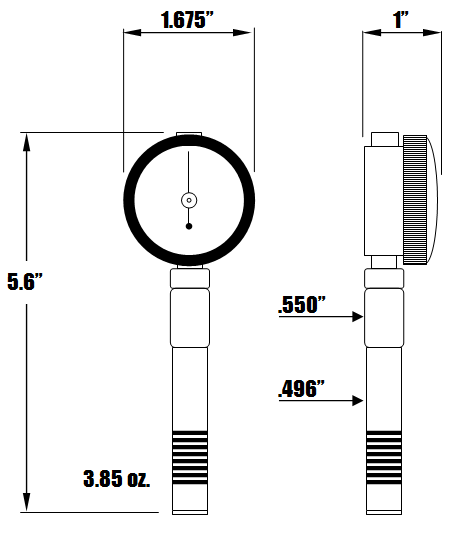

- Small face (1.675" Diameter)
- Increments of 1 from 0-100

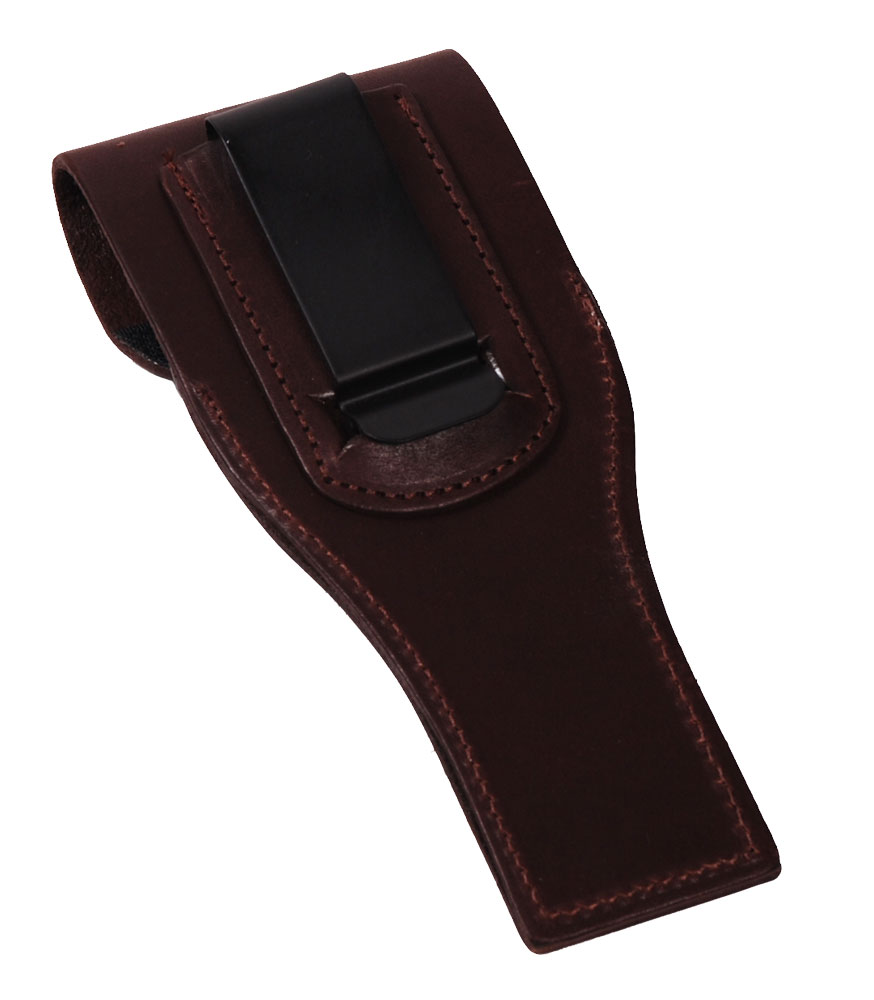

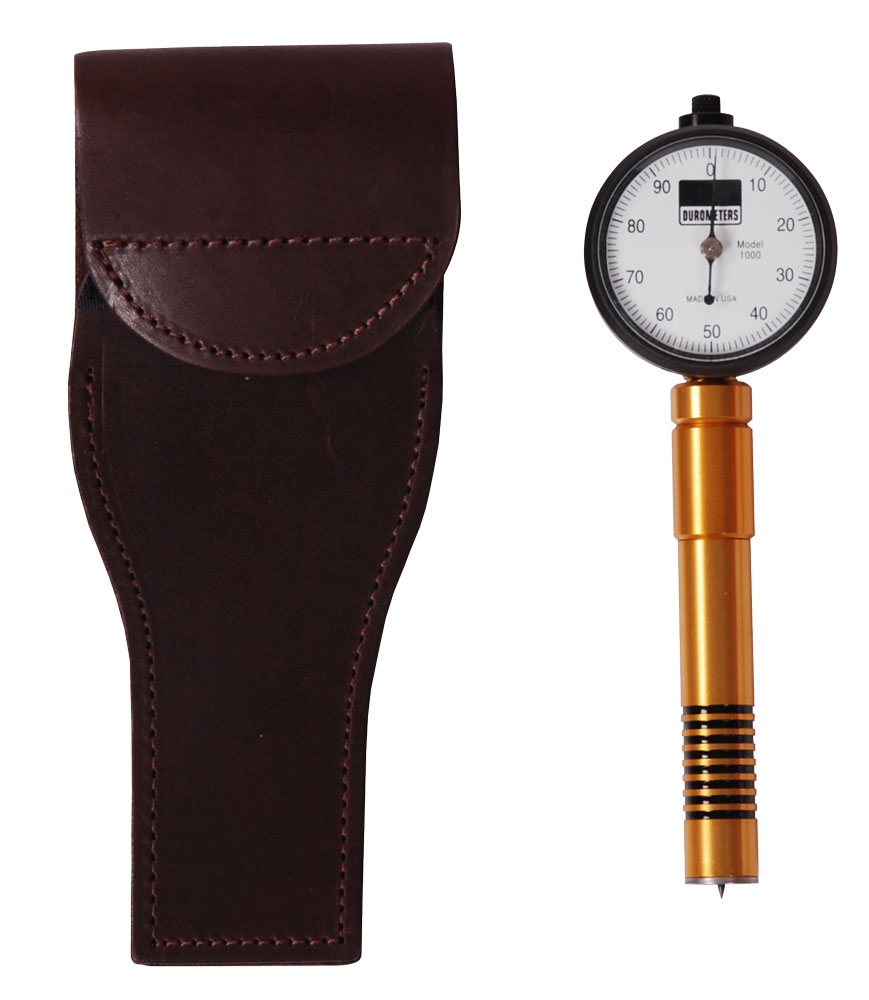

- Furnished with a leather carrying case
- Easily fits into your pocket or clipped on belt
- One year warranty
- Conforms to ASTM D-2240 and NIST Traceable Certificate
We offer a complete line of durometer test stands. The stand, when used in conjunction with a Durometer, eliminates operator error sometimes associated with hand-held durometer testing. Our stands feature a load weight for the proper testing pressure as noted in ASTM D2240, and a quick-lock column for easy adjustment. Click here for more info on Durometer Test Stands.
| Item | Description | Price | ||
|---|---|---|---|---|
Type A Mini Dial Durometer for Soft rubber, plastics and elastomers - H-1000-A | $480.00 | |||
Type B Mini Dial Durometer for Harder elastomers and plastics. Use above 93 A scale - H-1000-B | $530.00 | |||
Type C Mini Durometer for Medium hard elastomers and plastics - H-1000-C | $530.00 | |||
Type D Mini Dial Durometer for Hard rubber and plastics - H-1000-D | $480.00 | |||
Type DO Mini Dial Durometer for Dense granular material and textile windings - H-1000-DO | $530.00 | |||
Type O Mini Dial Durometer for soft elastomers below 20 A scale - H-1000-O | $530.00 | |||
Type Asker C Mini Dial Durometer for Sneaker Foam - H-1000-ASK-C | $830.00 |
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
