FGE - FGV

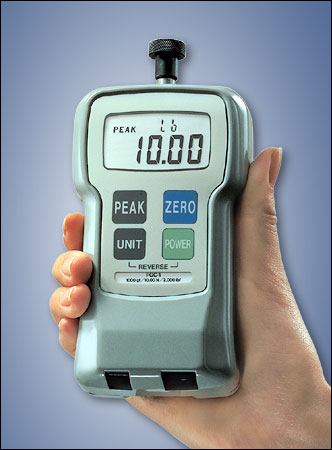

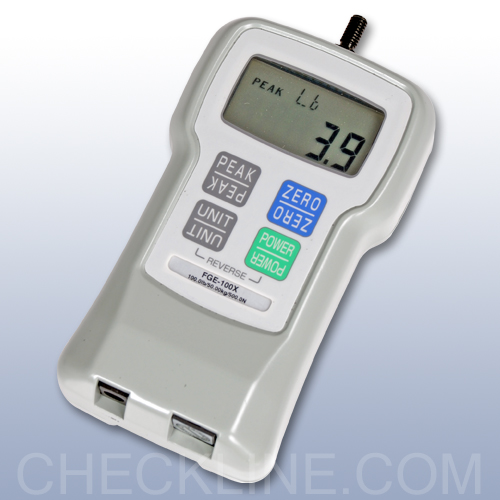

Hand-held Digital Force Gauge

8 Ranges up to 100lbs
Measures Push / Pull Force

The microprocessor-controlled, digital FGE Digital Force Gauges precisely measure push/pull forces up to 100 pounds with an accuracy of ± 0.2%.

They are extremely compact for convenient hand-held use and include provisions for mounting on a test stand for bench top use.

Optional Handle for FGE Force Gauge. FG-HANDLE

Includes Traceable Calibration Certificate

Accuracy ± 0.2%

User-selected units of Pounds, Kilograms or Newtons

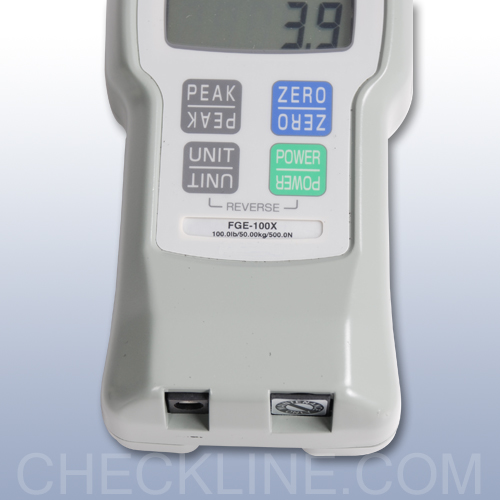

Display can be reversed for inverted use

Display "real-time" or "peak" force

200% overload protection

1 Year Warranty

FGE With included attachments

Model	Capacity	Resolution
FGE-0.5X	8.00 oz 200.0 g 2.000 N	0.01 oz 0.1 g 0.001 N
FGE-1X	16.00 oz 500.0 g 5.000 N	0.01 oz 0.1 g 0.001 N
FGE-2X	2.000 lb 1000 g 10.00 N	0.001 lb 1 g 0.01 N
FGE-5X	5.000 lb 2.000 Kg 20.00 N	0.001 lb 0.001 kg 0.01 N
FGE-10X	10.00 lb 5.000 Kg 50.00 N	0.01 lb 0.001 kg 0.01 N
FGE-20X	20.00 lb 10.00 Kg 100.0 N	0.01 lb 0.01 kg 0.1 N
FGE-50X	50.00 lb 20.00 Kg 200.0 N	0.01 lb 0.01 kg 0.1 N
FGE-100X	100.0 lb 50.00 Kg 500.0 N	0.1 lb 0.01 kg 0.1 N

Note:
FGE-0.5X & FGE-1X - Shaft thread is M4
FGE-2X & Over - Shaft thread is M6

FGS-100H Manual Hand Wheel Operated Test Stand
Versatile bottom mounting plate accepts standard and custom-made attachments
	Click image for more info

MESURgauge Mesurgauge Load & Travel Analysis Software
Windows 7 Compatible
	Click image for more info

FG-HANDLE Force Gauge Handle

	Click image for more info

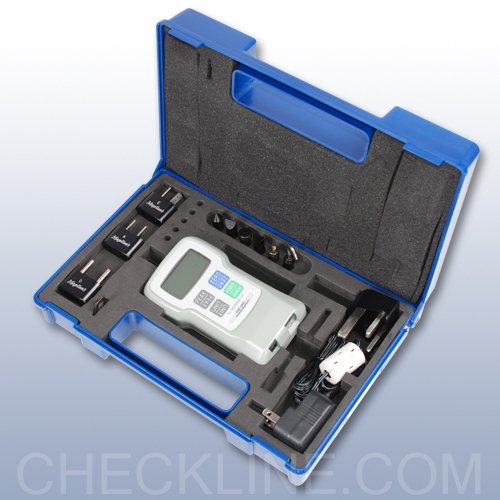

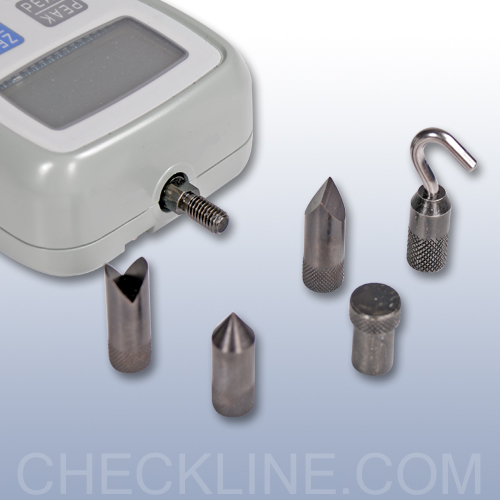

Includes Force Gauge, Univerasal 100-240V AC Adapter/Charger, 6 Attachments;Hook, Flat Head, Notched Head, Hanger, cone head & extension rod in a foam fitted carrying case

Special Attachments

Accuracy	±0.2% full scale
Display	4-Digit LCD, 12mm high. Reversible by the push of a button. Minus sign for tension
Display Update	0.05, 0.1, 0.2, 0.3, 0.5, 1 sec
Sampling Rate	1000 times per second
Overload Protection	200% of full scale
Power	Rechargeable Ni-Cad battery or AC through adapter/charger
Auto Power Shut-Off	Yes (not active if adapter/charge is in use)
Battery Life	12 hours (when fully charged)
Recharge Time	Approximately 18 hours when fully discharged

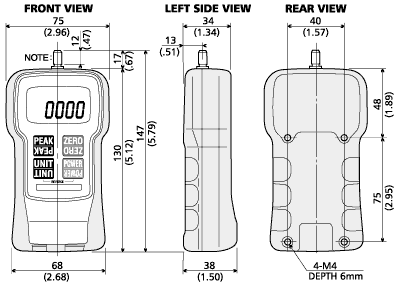

Dimensions	5.1" L x 2.9" W x 1.5" H (130 mm x 75 mm x 38 mm)
Weight	1 lb (450 g)
Approvals	CE approved
Warranty	1 Year

PDF Data Sheet Click to download

Instruction Manual PDF Click here to download

Special Attachments Click Here To Download

Toriemon Software for FGV Click here to download

	Item	Price	Description
Check the items you would like to purchase then click "Buy Now"
	FGE-0.5X	$575.00	FGE Digital Force Gauge Complete Kit
	FGE-1X	$575.00	FGE Digital Force Gauge Complete Kit
	FGE-2X	$575.00	FGE Digital Force Gauge Complete Kit
	FGE-5X	$575.00	FGE Digital Force Gauge Complete Kit
	FGE-10X	$575.00	FGE Digital Force Gauge Complete Kit
	FGE-20X	$575.00	FGE Digital Force Gauge Complete Kit
	FGE-50X	$575.00	FGE Digital Force Gauge Complete Kit
	FGE-100X	$575.00	FGE Digital Force Gauge Complete Kit
Accessories
	FG-HANDLE	$100.00	Handle for FGE / FGV
	FG-09V120UC	$40.00	Spare / Replacement Power Adapter for FG Force Gauges
	BATT-FGEX	$60.00	Spare / Replacement Internal Rechargeable NiCad Battery

In stock 1 Week Lead Time Special Order Item
