AT-A Automatic Adhesion Tester - Positest ATA Automatic

Made in USA

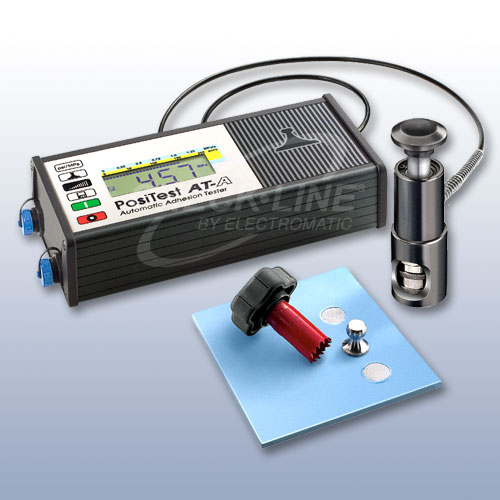

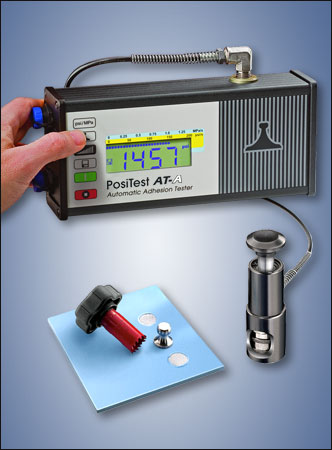

ATA Adhesion Tester
Click images to enlarge.
The AT-M has been replaced by the new and improved ATA. Please click here to view the new model

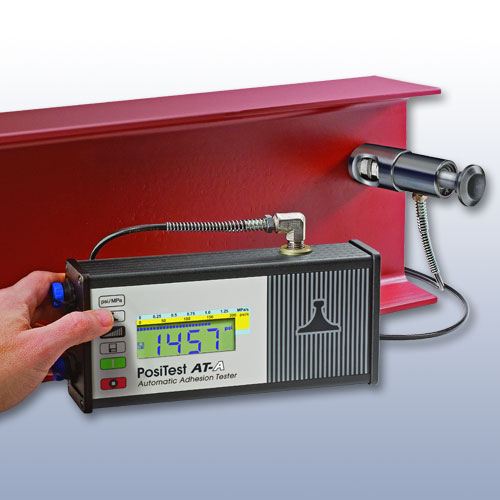

The new AT-A Automatic Adhesion Tester measures adhesion of coatings to metal, wood, concrete and other rigid substrates and now features a new electronically controlled hydraulic pump.

Simple

  • Portable, hand-operated instrument requires no external power source – ideal for lab and field use.

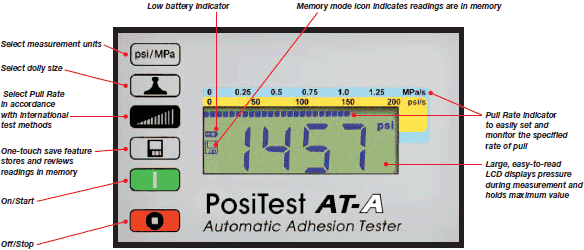

  • Large, easy-to-read LCD
  • Pull Rate Indicator – allows operator to easily monitor and adjust the rate of pull in accordance with international test methods.
  • Easily select dolly sizes, change measurement units or store readings, with the touch of a button
  • Conversion charts not required – tester automatically calculates pressure based on dolly size
  • Inexpensive, single-use dollies eliminate cleaning re-use and can be kept as a permanent record
  • Each kit comes with everything needed for testing


Durable

  • Weatherproof, dustproof and shockproof
  • Quality hydraulic pump can be used in any position
  • Rugged carrying case
  • One year warranty

Accurate
  • Every AT-100 Adhesion Tester pressure system is calibrated and certified to ± 1% accuracy using an NIST traceable load cell
  • Self-aligning dolly enables accurate measurements on smooth or uneven surfaces
  • Hi-grade, industrial pressure sensor ensures continued accuracy
  • Conforms with ASTM D4541/D7234, ISO 4624, SSPC-CS 23.00/AWS C2.23/NACE No. 12, and others
Versatile
  • Internal Memory stores maximum pull-off pressure, rate of pull, test duration and dolly size for up to 200 pulls
  • Optional software available for downloading to a computer
  • LCD displays pressure value in psi or MPa
  • 10, 14, 20 or 50 mm dollies maximize capability and accuracy across a wide range of bond strengths
Dolly Size
Adhesion Strength
10mm
10000 psi
70 MPa
14mm
6000 psi
40 MPa
20mm*
3000 psi
20 MPa
50mm**
500 psi
3.5 MPa
* supplied with AT-A
** requires 50mm kit

Features

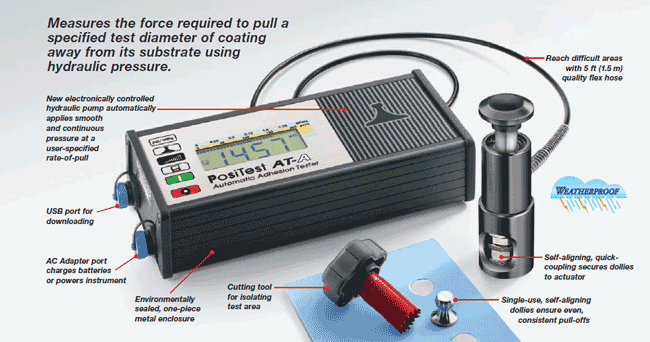

  • New electronically controlled hydraulic pump automatically applies smooth and continuous pull-off pressure at a user-specified rate
  • User selectable pull rates ensure compliance with international test methods for a variety of industries including metal, wood and concrete
  • Test with the simple push of a button. No twisting, pumping or cranking. No valves to close, needles to reset, or scales to adjust
  • Built-in rechargeable batteries perform 200+ tests per charge. Continue testing with AC power while batteries recharge. Supplied with universal AC Adapter

Optional Accessories

1

50 mm Accessory Kit
  • Ideal for lower bond strength finishes such as coatings on wood, concrete and plastic
  • Larger surface area of test dolly provides improved low range precision and repeatability
  • Range 0 - 500 psi (0 - 3.5 MPa)
  • Includes 50 mm stand-off, 50 mm hole saw, and 50 mm test dollies (12)
4

Drilling Template for 50 mm Dollies
  • Drilling template and drill bits to isolate test area, ideal for thicker coatings on concrete. Includes (10) drill bits 5/32" (4 mm)
5 PosiSoft for Windows® analysis software
  • Ideal solution for those who wish to download to a PC for printing or archiving
  • Allows entry of notes and annotations
  • Multi-language support including English, German, Italian, Spanish and French
  • Exports to a document or spreadsheet
  • Includes USB cable for computer hook-up
2

Adhesive Kit
  • Additional adhesive, mixing sticks, palettes and cotton swabs
3 Dollies
  • Additional supplies of standard 20 mm and 50 mm dollies
  • Custom 10 mm and 14 mm dollies (24 hour drying time recommended)

Related Products

Click image for more info
AT-M
Pull-Off Adhesion Tester - Positest ATM

Complete Kit

Supplied as a complete kit including Adhesion tester with digital display, 20 mm aluminum test dollies (20), Abrasive pad, Cutting tool, Adhesive with mixing sticks and palettes, Cotton swabs, Instruction booklet, Certificate of Calibration traceable to NIST, Instructional Video, USB Cable, PosiSoft Software - available as a free download, Sturdy, lightweight carrying case, Two-year warranty, Built-in rechargeable NiMH batteries with recharger/AC power supply.
ATA Adhesion Tester kit

Downloads

Adehsion Tester Data Sheet
PDF File
Adehsion Tester Instruction Manual
PDF File

Buy Now

Item Description Price
AT-A
The AT-M has been replaced by the new and improved ATM. Please click here to view the new model - Please contact us for pricing and availability.
$
Accessories
DOLLY10
10mm Dollies - 10 Pack - AT-10
$50.00
DOLLY10APK100
10mm Dollies - 100 Pack
$425.00
DOLLY14
14mm Dollies - 10 Pack - AT-14
$50.00
DOLLY14APK100
14mm Dollies - 100 Pack
$425.00
DOLLY20
20mm Dollies - 10 Pack - AT-20
$35.00
DOLLY20APK100
20mm Dollies - 100 Pack
$300.00
DOLLY50
50mm Dollies - 4 Pack, Requires Standoff Supplied in AT-50-KIT, old pn AT-50
$50.00
DOLLY50APK50
50mm Dollies - 50 Pack, Requires 50mm Standoff Supplied in AT-50A-KIT. Not for use with AT-50C-KIT.
$550.00
AT50KIT
50mm Accessory Kit including 12 pcs. 50mm dollies, stand-off and hole saw
$300.00
ATADHESIVEKIT
Additional Adhesive Kit - AT-ADHESIVE
$35.00
TMPLTAS
Drilling Template for 50 mm Dollies - AT-TEMP
$135.00
